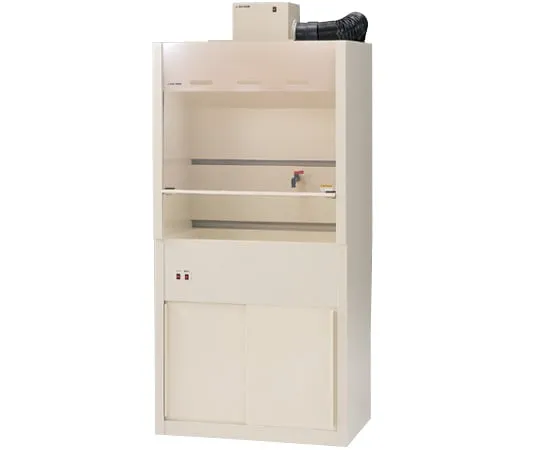

Spec

• Material: Body / PVC (vinyl chloride Plastic), Door / Transparent PVC (vinyl chloride Plastic)
• external dimension: 800 x 550 x 1770 mm (Include fan units)
• Sash opening: 720 x 580 mm
• Weight: 51 kg
• Sink size: 700 x 370 x 100 mm
• power supply: AC100V 50 / 60Hz
• Interior lighting: fluorescent lamps (10 W) x 1 piece
• Maximum Power Consumption: 100/120 W (50 / 60Hz)
• air volume: approx. 5 m ^ 3 / min (Door 1/3 open, 0.5 m/s face speed without load) ※ The exhaust adjustment function is set at strong setting ※ It may change dep***ing on the working environment
• Water supply: Rc 1/2 (φ 16 mm step drill with a connecting port on the back of the draft)
• Wastewater: φ 18 mm step drill (With a drainage hose 1 m)
• Model number: HF -800 DXNA set (displacement Adjustments)
• PVC
• air volume (m3/min): Strong 3.4 / 3.9, Medium 2.3 / 2.5, Weak 1. 3/1 7
• Static pressure (kPa): Strong 0.36 / 0.5, medium 0.33 / 0.42, weak 0.285 / 0.28
• Power Consumption (W): Strong 93/110, medium 75/74, and weak 57/54
• * Shipping, carrying, installation and assembly costs are required separately. Please contact us
• * Please contact your facility group for an application for local exhaust equipment
• 30 (Excluding soil, days and holidays) <

  > AS ONE to Co. 0120-500-558, 0120-500-483 Ltd

• * A dedicated cart (Sales 3 -4056 – 04) is easy to install and move.
