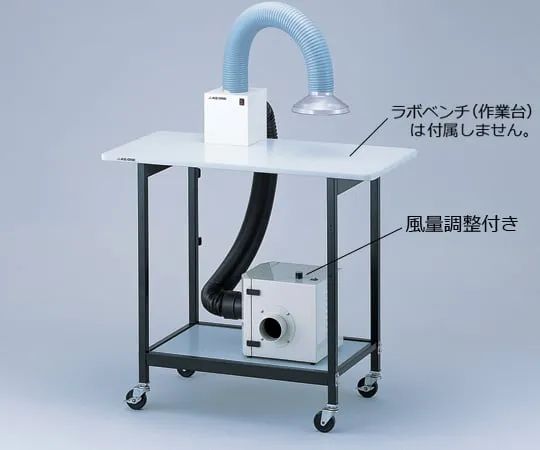

1-7623-01 Desktop Single Arm Duct with Air Volume Adjustment -
Product Description
Product Model: 1-7623-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7623-01
Product Brand: AS ONE Corporation
Features
- Duct fan unit for local exhaust utilizing flexible duct which can change shape freely.
- Adsorption of gas is also possible by using an optional activated carbon unit.
- The exhaust air volume can be adjusted to three levels: high, medium, and low, and the exhaust air volume can be controlled according to the usage conditions to reduce fan noise and power consumption.
Spec
- Outer dimensions: 150 x 200 x 253mm
- Unit size for desktop mounting: 150 x 160 x 160mm
- Arm duct length: 0.8m, Air inlet Φ175mm
- Material: Body, arm duct/PVC (vinyl chloride resin)
- Power supply: AC100V 50/60Hz
- Maximum power consumption: 100/120W (50/60Hz)
- Power cord length: 2m (2P plug)
- Weight: 10.7kg
- Model number: Table top type single set (with air volume adjustment)
- *Lab bench is not included in the package.
- Set configuration: Arm duct 0.8m x 1 piece, Round hood x 1 piece (PVC-transparent 3mm thickness), Unit for desktop mounting x 1 unit, Fan unit x 1 unit, Duct hose for connecting (Φ75 x 2.5m) x 1 piece
