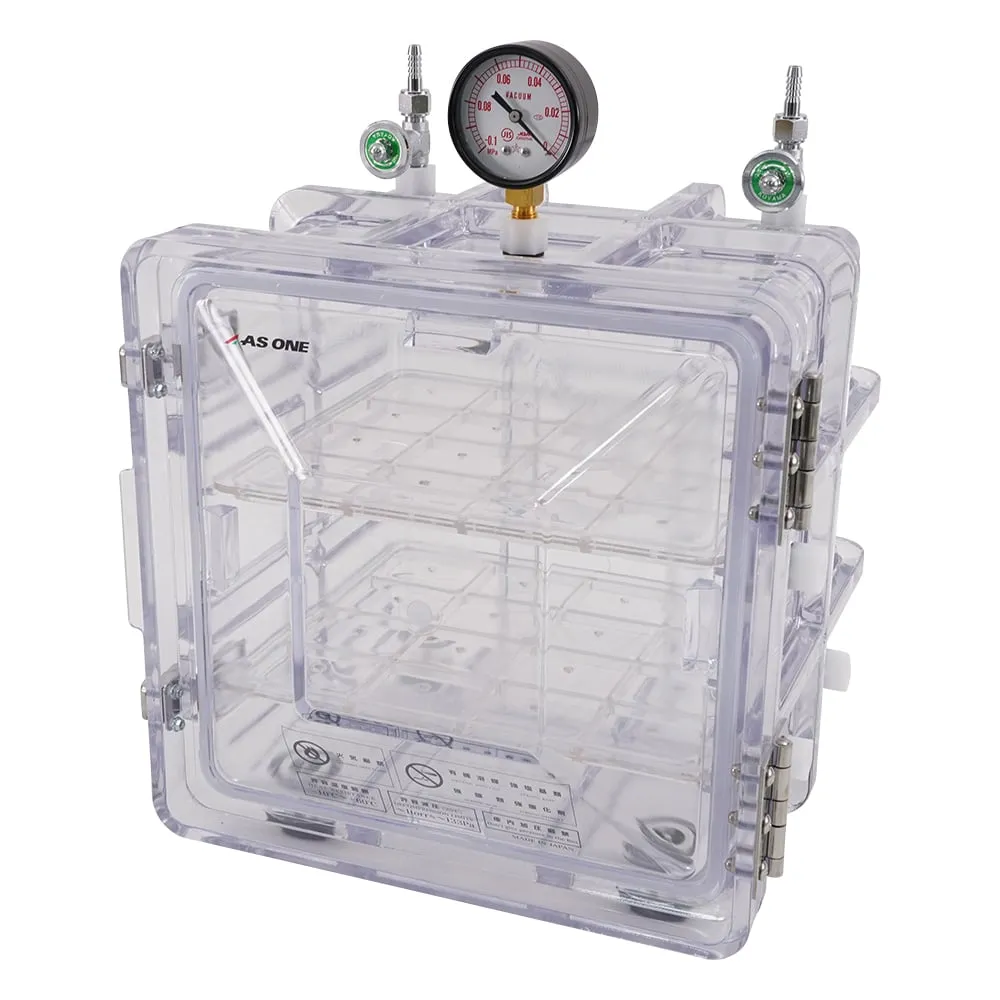

1-6158-01-20 Molded Vacuum Desiccator 300 x 287 x 325 mm with Calibration Certificate MVD-100
Product Description
Product Model: 1-6158-01-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-6158-01-20
Product Brand: AS ONE Corporation
Features
- Tough vacuum desiccator with PC (polycarbonate) integral molding.
- High sealing silicone packing is ***d for the seal part of the door and main body, so there is no need for grease.
- Vacuum gauges and valves can be mounted on either the top or right side of the body.
- High-performance integrally molded vacuum desiccator.
Spec
- Material: PC (Polycarbonate)
- Allowable vacuum: 1 Torr (about 133 Pa)
- Number of shelves: 4
- Capacity: Up to 13 L
- Weight: 7 kg
- Load capacity: body/approx. 50 kg, shelf/approx. 5 kg
- External dimensions (mm): 300 x 287 x 325
- Internal dimensions (mm): 250 x 210 x 250
- Accessories: Vacuum valve (phi8 mm nipple, base R 1/4) x 2, calibrated vacuum gauge x 1, shelf board x 2
- (1 -4148 - 03) High vacuum diaphragm type dry vacuum pump 2.2 A/2.3 A DTC -41
- (1 -4148 -11) High vacuum diaphragm type dry vacuum pump 1.3 A DTC -22
