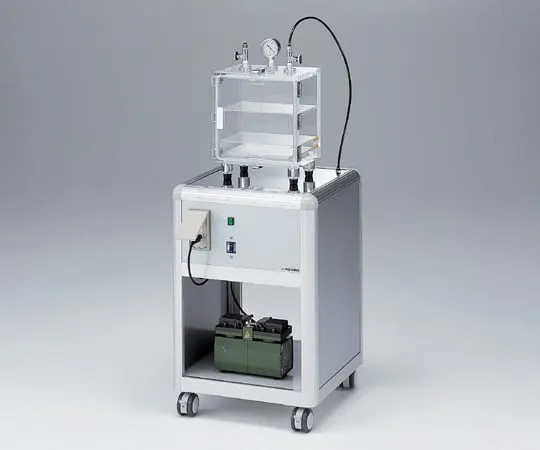

1-6088-01 Vacuum Laboratory Bench Unit Type VL-UNIT
Product Description
Product Model: 1-6088-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6088-01
Product Brand: AS ONE Corporation
Features
- A valve is attached to the vacuum line on the trestle.
- A vacuum desiccator, a dry vacuum pump, a set of piping, and a trestle were combined into one set.
Spec
-
Weight: 36kg (including pump vacuum desiccator)
- Material: Transparent toughened PMMA (acrylic) plate
- Allowable vacuum degree: About 133Pa (1Torr)
- Shelf board dimensions: 257 x 171 x 4mm (up to 2 shelf boards can be inserted at an interval of 100mm)
- Number of shelf boards: 2 sheets
- Weight: 11kg
- Plate thickness: 20mm
- Outer dimensions: 300 x 222 x 300 (total height 460) mm
-
Inner dimension: 260 x 180 x 260mm
- Exhaust speed: 20L/min (50Hz), 24L/min (60Hz)
- Size: 118 x 236 x 184mm
- Achieving pressure: 5.3kPa (40Torr)
- Power supply: Single phase 100V 50/60Hz
- Power cord length: About 1.8m (3P plug)
-
Weight: 7.2kg
- Material: Top board/stainless steel (SUS304), Exterior/aluminum composite board, Frame/Aluminum (anodic oxide finish), Shelf board/steel baking coating
- Size: 500 x 500 x 758mm
- Caster: φ75mm nylon, polyurethane made (with stopper)
- Power cord length: Approx 2.8m (3P plug)
- Model number: VL-UNIT
- Accessories: Vacuum distribution tube, Vacuum valve (1 piece each for intake, exhaust), Pressure gauge x 1 piece
