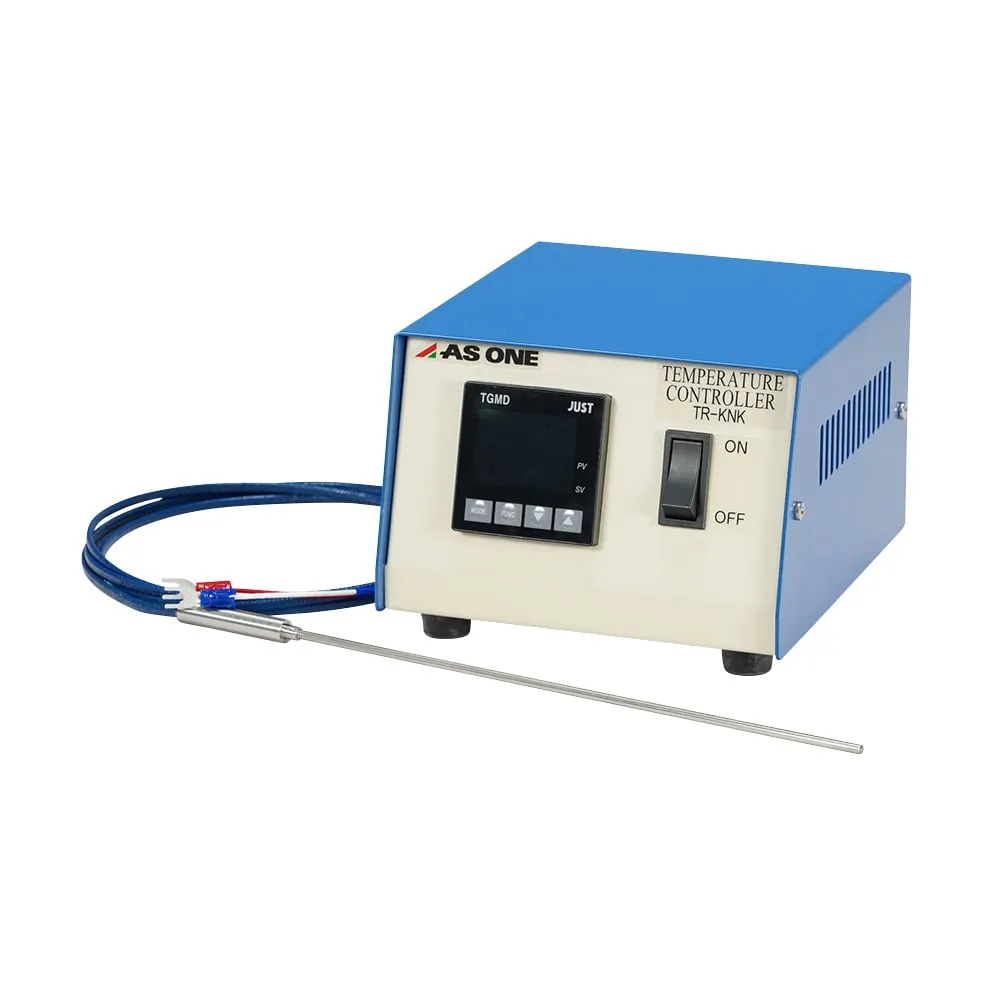

1-6540-11 Digital temperature controller 0 ~ 999 degrees Celsius K thermocouple x 1 TR-KNK
Product Description
Product Model: 1-6540-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6540-11
Product Brand: AS ONE Corporation
Spec
- Setting range (degrees): 0 ~ 999
- Minimum Display Units (deg. C): 1
- Number of pieces: 1
- Sensor sheath material: SUS 316
- Sensor size: phi 3.2 x 200 mm
- Lead wire length: 2 m
- Temperature control accuracy: +/- (0.5% FS + 1 digit)
- Number of channels: 1
- Temperature control: ON/OFF control (relay type)
- Attached sensor: 1 x K thermocouple
- Body size: 135 x 145 x 95 mm
- Power supply: 100 VAC 50/60 Hz
- Power cord length: 1 x 2 m
- Contact capacity: MAX 15 A
- Accessories: Power cord (wire with 3P plug + no ground wire)
- *Install the product in such a way that the temperature of the sleeve is below 100 degrees Celsius.
