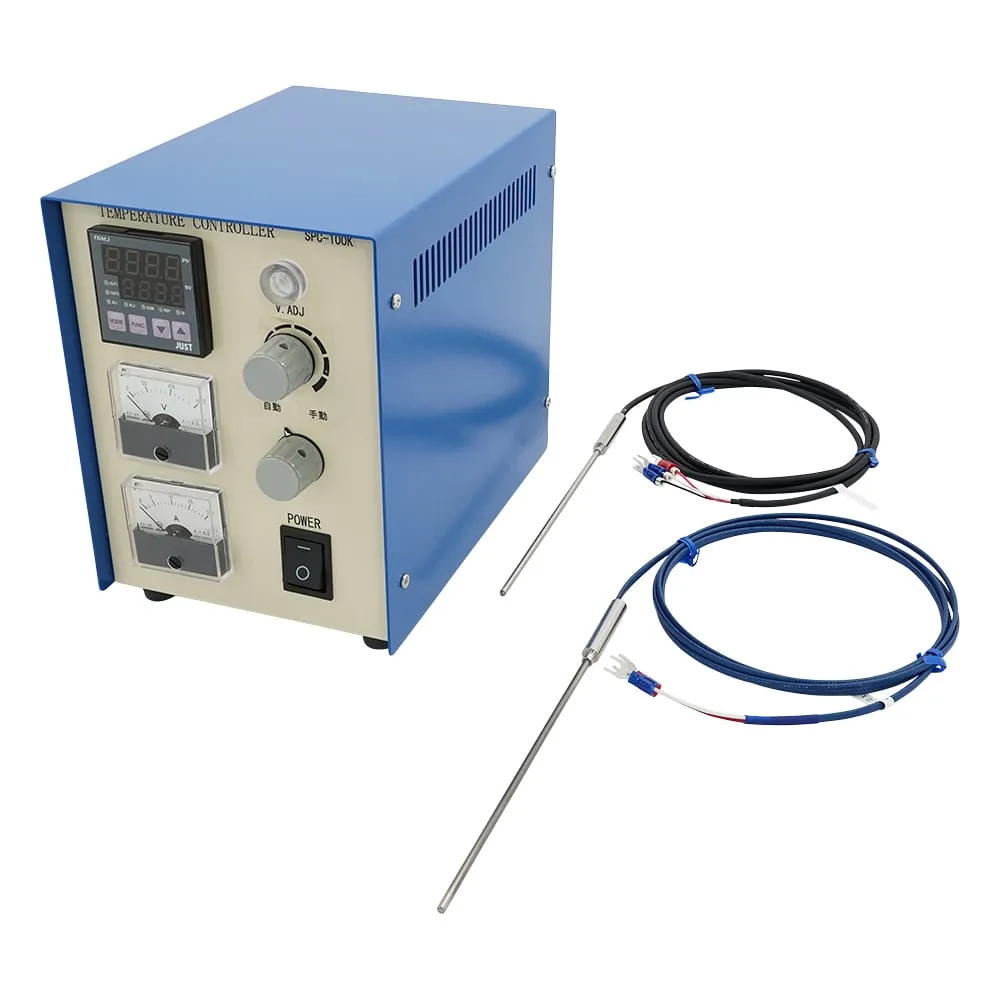

1-6539-11-20 Temperature Controller 100 V Calibration Certificate SPC-100K
Product Description
Product Model: 1-6539-11-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-6539-11-20
Product Brand: AS ONE Corporation
Spec
- Input power: 100 V
- Set temperature (deg. C): 0 ~ 1000
- Number of pieces: 1
- Temperature control method: Phase control method (with slope setting)
- Control behavior: PID autotuning
- Input: Pt 100 ohm sensor, K Thermocouple sensor (phi 3.2 x 150 mm)
- Voltage tolerance: 10% of rated voltage
- Capacity: 15 A
- Power cord length: 2 m
- Body size: 145 x 220 x 200 mm
- Includes: Pt 100 ohm sensor, K Thermocouple sensor, power cord (3 P plugged wire + no ground wire)
- *The measurement range using the included sensor is 0 ~ 750 degrees Celsius.
- *Install the product in such a way that the temperature of the sleeve is below 100 degrees Celsius.
