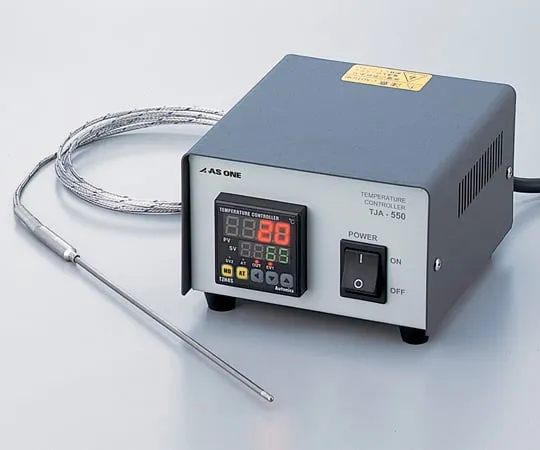

1-6124-81 【Global Model】 Digital High Accuracy Temperature Controller 0 - 500℃ 220V±10% TKA-550K
Product Description
Product Model: 1-6124-81Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6124-81
Product Brand: AS ONE Corporation
Features
- It is equipped with a terminal stop output terminal.
- As for the temperature control system, PID control enables high-precision temperature control (with auto-tuning).
- As for the temperature display, the PV/SV two-stage display is adopted so that the measured value and the set value can be seen at a glance to prevent setting errors.
- Compact design saves space.
Spec
- Settings range: 0 - 500℃
- Sensor type: K class thermocouple
- Temperature control system: PID control (auto-tuning)
- Temperature display precision: SV +/-3% or 3℃, whichever is larger
- Temperature setting system: Sheet key touch system
- Output terminal: M4 screw terminal
- Connection capacity: MAX 7A (resistance load)
- Power supply: 220V±10%(2P plug)
- Size: 135 x 150 x 94mm
- Attached sensor: K class thermocouple φ3.2 x 200mm (stainless steel sheath (SUS304)) cable length 1.9m
- Country of origin: Japan
- Control Panel : English
- Plug: Type F(https://en.wikipedia.org/wiki/Mains_electricity_by_country)
