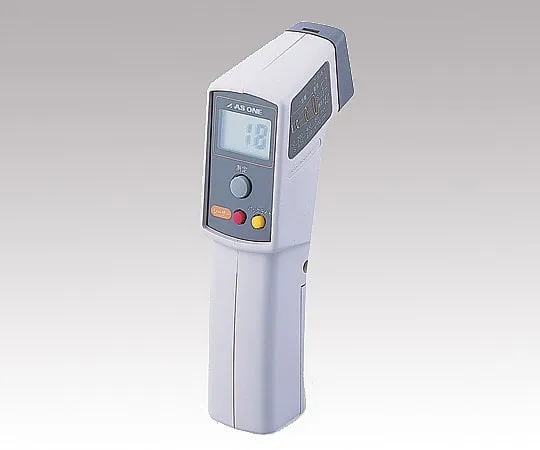

1-6078-01-56 Radiation Thermometer (with laser marker) with English Calibration Certificate ISK8700
Product Description
Product Model: 1-6078-01-56Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-6078-01-56
Product Brand: AS ONE Corporation
Spec
- Accuracy of measurement: -20 to + 100 degrees C/+ 2 degrees C, + 101 to + 315 degrees C/+ 2% rdg (condition measurement ambient temperature 23 +/- 5 degrees C, emissivity 0.95 during black furnace calibration)
- Emissivity: 0.95 fixed
- Distance factor: D: S = 8: 1
- Detection elements: Thermopile
- Response time: 0.5 seconds
- Power supply: 9V battery 6F 22 (006P) (included for testing)
- With backlight and hold function * When the distance between the body and the object to be measured is 400 mm, the area to be measured is a circle with a diameter of 50 mm.
- Size: 41.5 x 160 x 65 mm
- Weight: approximately 140 g
- Accessories: Cap (with strap), leather case, vinyl cover
- Measuring range: -20 to + 315 degrees C
- Resolution: 1 °C
- With laser marker
- *The standard calibration points are three points: low temperature, medium temperature and high temperature. If you would like additional points, please contact us separately.
