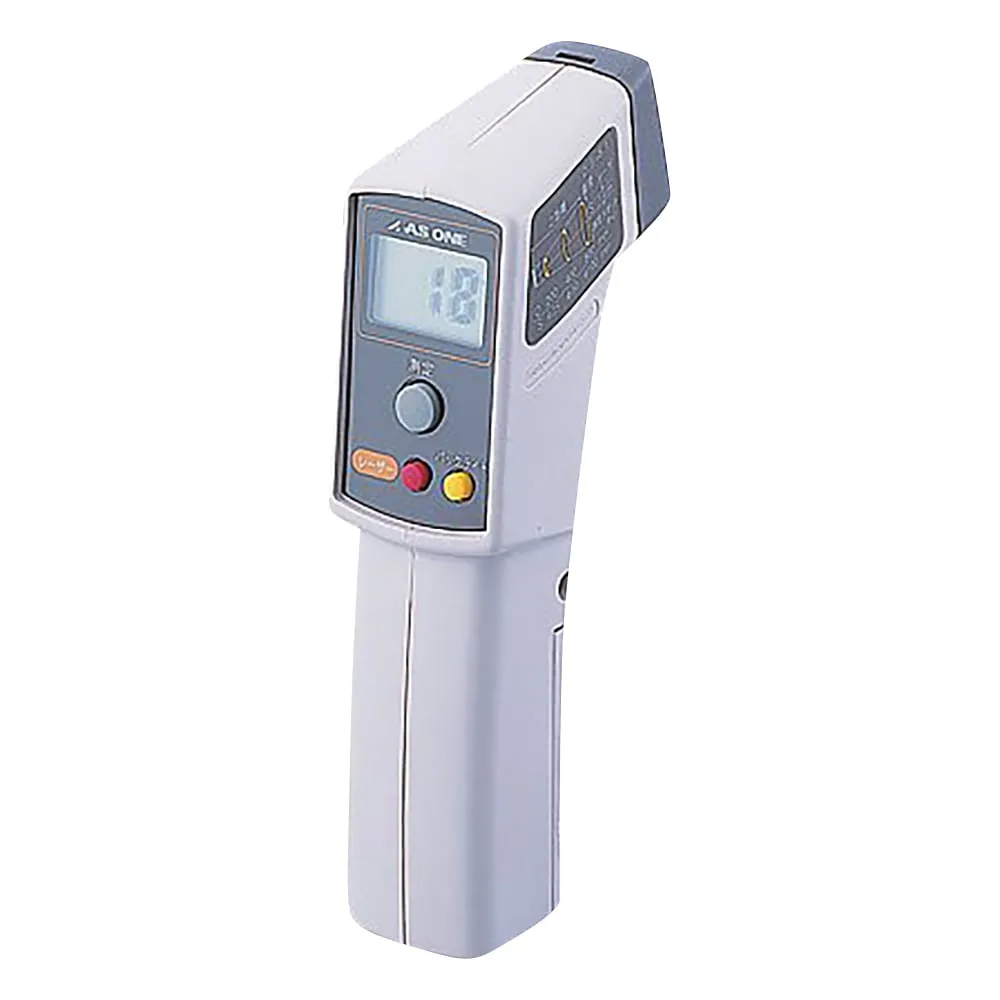

1-6078-01-20 Radiation Thermometer (With Laser Marker) With Calibration Certificate ISK8700
Product Description
Product Model: 1-6078-01-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-6078-01-20
Product Brand: AS ONE Corporation
Features
- It comes with a laser marker to reliably measure the measuring point.
- Surface temperature can be measured quickly.
- The measured temperature reading is automatically held for about 5 seconds.
- * Comes with the PSC mark in compliance with the Consumer Product Safety Act (Portable Laser Application Devices). This device is a Class 2 laser product and has the PSC mark.
- * With auto power off function. *If you do not press the measurement key for more than about 5 seconds, the auto power OFF function will operate and the power will be automatically turned off. This prevents battery drain ca***d by forgetting to turn off the power.
- * It has a sensor cap to prevent dust and foreign objects from entering the measurement window. It prevents accidental laser irradiation when not in *** and is safe.
Spec
- Model number: ISK 8700 II
- Measurement accuracy: 20 to + 100 ℃/±2 ℃, + 101 to + 315 ℃/±2% rdg (Condition Measurement Environment Temperature 23 ±5 ℃, Radiation Rate 0.95 Black Body Reactor Calibration)
- Radiation rate: 0.95 fixed
- Distance Factor: D: S = 8: 1
- Detection element: thermopile
- Response time: 0.5 seconds
- Power supply : 9V battery 6F 22 (006P) (test attachment)
- With a backlight and hold function * If the distance between the main unit and the target is 400mm, the measurable area is a circle with a diameter of 50mm.
- Size: 41.5 x 160 x 65mm
- Weight: about 140g
- Accessories: Cap (Strap included), leather case, vinyl cover
- Measurement range: 20 to + 315 ℃
- Resolution: 1 ℃
- With laser marker
