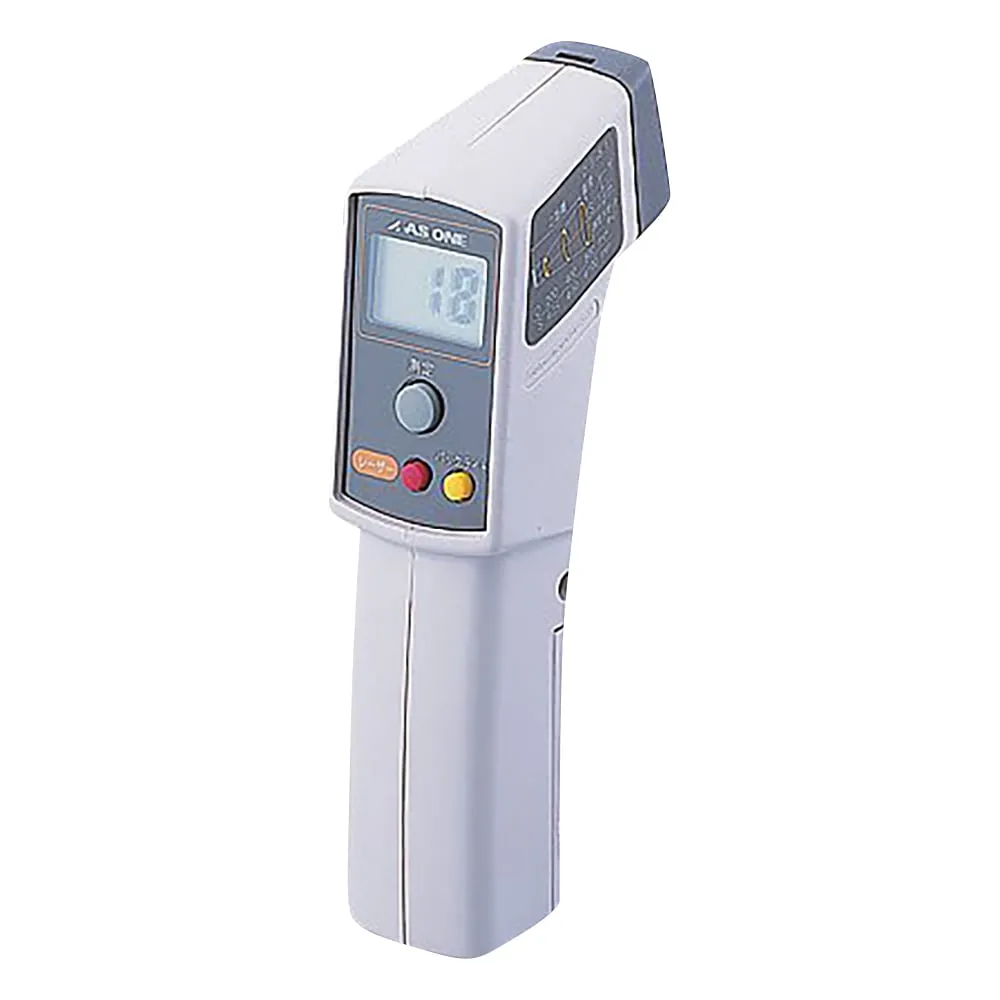

1-6078-01 Radiation Thermometer (With Laser Marker) ISK8700II
Product Description
Product Model: 1-6078-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6078-01
Product Brand: AS ONE Corporation
Features
- Comes with a laser marker to reliably measure the measurement point.
- You can quickly measure surface temperature.
- The watch will automatically hold (lock) the measured temperature reading for about five seconds.
- PSC mark compliant with the Consumer Product Safety Law (Portable Laser Application Equipment). This unit is a Class 2 laser product and has a PSC mark.
- With auto power OFF function. *If you do not press the measurement key for more than about 5 seconds, the Auto Power OFF function will operate and the power will be turned off automatically. Prevents battery drain ca***d by forgetting to turn off the power.
- Has a sensor cap that prevents dust and foreign matter from entering the measurement window. Prevents inadvertent laser irradiation when not in *** and is safe.
Spec
- Model number: ISK8700II
- Measurement accuracy: -20℃ to +100℃/+/- 2℃, +101 to +315℃/+/- 2%rdg (condition measurement environment temperature 23 +/- 5℃, emissivity 0.95 at the time of blackbody furnace calibration)
- Emissivity: 0.95 fixed
- Distance factor: D: S=8: 1
- Detecting element: Thermopile
- Response time: 0.5 seconds
- Power: 9V dry cell 6F22 (006P) (included for test)
- With backlight, hold function *Distance of body and measurement target is 400mm, Areas that can be measured is diameter 50mm circle.
- Size: 41.5 x 160 x 65mm
- Weight: Approx 140g
- Accessories: Cap (with strap), leather case, vinyl cover
- Measurement range: -20 to +315℃
- Resolution: 1℃
- With laser marker
- RoHS3 (EU)2015/863 Certificates can be issued
