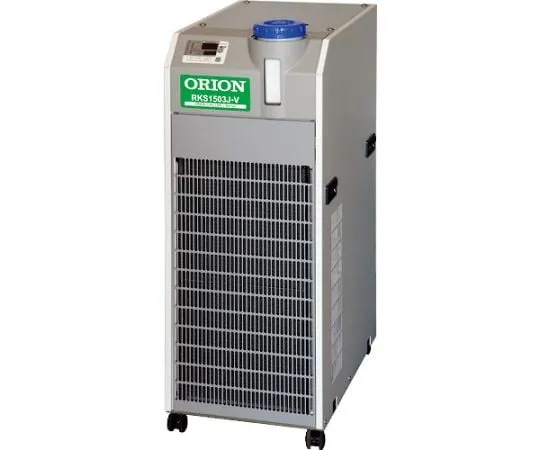

64-8663-32 UNIT COOLER RKS1503J-V
laboratoryinstruments

64-8663-32 UNIT COOLER RKS1503J-V

model: 64-8663-32
brand: ORION ELECTRIC Co., LTD.

Product Description

Product Model: 64-8663-32Product Brand: ORION ELECTRIC […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-8663-32
Product Brand: ORION ELECTRIC Co., LTD.

Features

  • Temperature control of ±2°C is possible by ON/OFF control of the refrigerator.
  • Class No.1 performance with a small body.
  • For supplying cooling water to a wide variety of equipment such as concentrators, analyzers, and X-ray inspection equipment.
  • Many application functions are available dep***ing on the application. (Consultation Required)

Spec

  • Width (mm): 375
  • Depth (mm): 590
  • Height (mm): 933
  • Temperature range (degrees C): 15 ~ 35
  • Temperature range (deg. C): 15 ~ 35
  • Maximum Flow Rate (L/min) (50/60 Hz): 33/42
  • Cooling Capacity (W) (50/60 Hz): 4900/5300
  • Power (V): 3-phase 200
  • Power Consumption (Watts): 1800/2200
  • Maximum lift (50/60 Hz): 50 m
  • Temperature Adjustment Accuracy: ± 2.0 °C (Load, ambient temperature and stable power supply)
  • Operating environment temperature range: 10 ~ 40 °C
  • Water Tank Actual Capacity: Approximately 17 L
  • Maximum lift (50/60 Hz): 50 m
  • Different operation from one unit to different voltages (Consultation required)
  • With Caster
  • Connection Diameter: RC 1/2
  • Country of origin: Japan
  • Securities Code: 195 -3488
