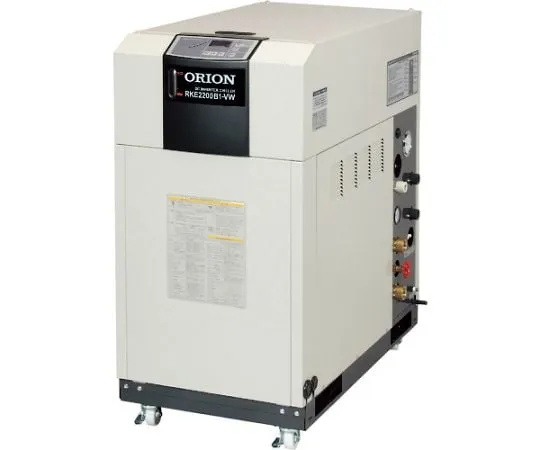

64-8663-06 DC INVERTER CHILLER RKE2200B1-VW-G2
Product Description
Product Model: 64-8663-06Product Brand: ORION ELECTRIC […]
Contact Us
Product Details
Product Model: 64-8663-06
Product Brand: ORION ELECTRIC Co., LTD.
Features
- The high temperature control accuracy of ±0.1°C was achieved with over 30% energy saving and compressor rotation control system.
- Suitable for a wide range of applications with a liquid temperature control range of 5~35°C.
- For cooling and temperature control of equipment such as fiber lasers, MRI, exposure equipment, high frequency induction heating equipment, plasma welders and ICP analysis equipment.
Spec
- Width (mm): 530
- Depth (mm): 970
- Height (mm): 1080
- Temperature range (degrees C): 5 ~ 35
- Temperature range (deg. C): 2 ~ 43
- Maximum Flow Rate (L/min) (50/60 Hz): 50/65
- Content (L): 20
- Cooling Capacity (W) (50/60 Hz): 10400
- Power (V): 3-phase 200
- Power Consumption (Watts): 3500/3700
- Minimum Amount of Circulation Used (L/min) (50/60 Hz): 28/43
- Temperature Adjustment Accuracy: ± 0.1 °C (Load, ambient temperature and stable power supply)
- Operating environment temperature range: 2 ~ 43 °C
- Water Tank Actual Capacity: Approximately 20 L
- Maximum lift (50/60 Hz): 50 m
- Different operation from one unit to different voltages (Consultation required)
- Power Cord Length: 3 m
- With Caster
- Connection Diameter: RC 1/2
- Country of origin: Japan
- Securities Code: 202 -1725
