Features

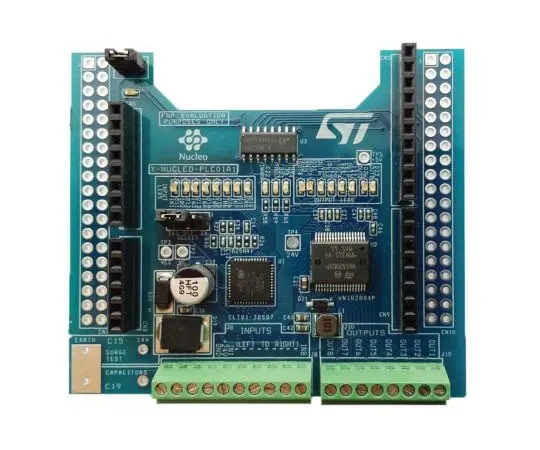

• X-NUCLEO-PLC01A1 Industrial PLC Expansion Board. The X-NUCLEO-PLC01A1 is an input/output expansion board which provides an STM32 Nucleo MCU board with industrial PLC (Programmable Logic Controller) functionality. 8 x inputs protected by a CLT01-38SQ7 digital termination array. 8 x outputs driving a VNI8200XP octal high-side solid-state relay. Host communication: SPI bus protected by on-board Si8661 digital isolator. Status LEDs: Power OK, SPI Activity, Fault, Over-temperature. 16 x I/O activity LEDs. Screw connectors for all protected I/O. Compatible with STM32 Nucleo-64 MCU boards. Arduino Uno r3 compatible Shield headers. Designed for situations required to pass IEC61000-4-2 8kV and 15kV test standards. Free development firmware and example library compatible with STM32Cube firmware. Suitable STM32 Nucleo MCU Boards. ; 802-9412 802-9412 NUCLEO-F030R8 Cortex-M0 core processor. ; 802-9416 802-9416 NUCLEO-F103RB Cortex-M3 core processor. ; 802-9425 802-9425 NUCLEO-F401RE Cortex-M4F core processor
