Features

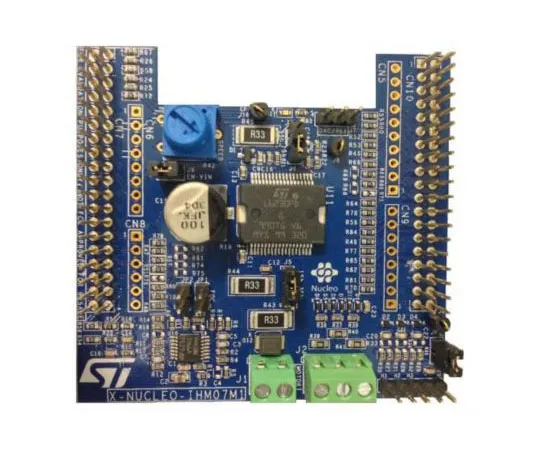

• X-NUCLEO-IHM07M1 BLDC/PMSM Motor Driver Expansion Board. The X- NUCLEO - IHM 07 M 1 is a three-phase Brushless DC motor (BLDC) driver expansion board based on the L6230 device. The L6230 driver is optimized for six-step and FOC algorithms thanks to indep***ent current sensing. Operating voltage range: +8 to +48Vdc. Peak output current: 2.8A (1.4Arms). Operating frequency: Up to 100kHz. Non-dissipative over-current detection and protection. Cross-conduction protection. Over-temperature protection. Selectable 3-shunt or 1-shunt motor current sensing circuit. Hall/Encoder motor sensor connector and circuit. Potentiometer for manual speed setting. User LED. Screw terminals for motor signals and power supply. ST morpho connectors for host MCU board. Pads for Arduino Uno r3 Shield headers. Compatible with STM32 Nucleo MCU boards. Dimensions: 70 x 66mm. Compatible with ST Six Step or ST FOC control algorithms
