Features

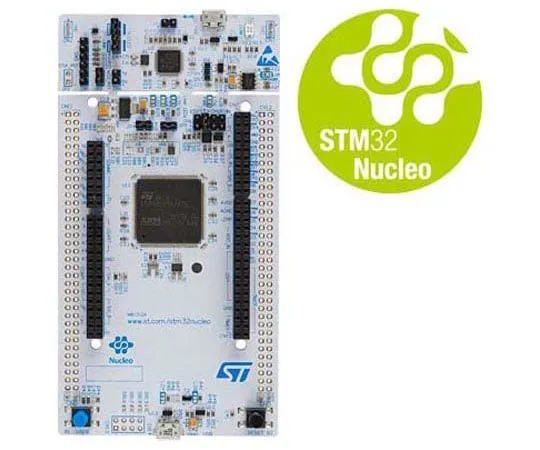

• NUCLEO-L496ZG-P Nucleo-144 Development Board. This NUCLEO-L496ZG-P Nucleo-144 board provides an affordable and flexible way for ***rs to build prototypes with the STM32L496ZGT6P microcontroller with external SMPSU. The Zio connector, which is an extension of Arduino Uno, provides access to more peripherals and with the ST morpho headers expands the functionality with a choice of Shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed. STM32L496ZGT6P 80MHz Cortex-M4F core MCU with 1MB Flash memory, 320KB SRAM, External SMPSU. Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory. LCD driver for 8 ;font face="symbol">´ ;/font> 40 or 4 ;font face="symbol">´ ;/font> 44 segments with step-up converter Up to 24 capacitive sensing channels: support touchkey, linear and rotary touch sensors. 8- to 14-bit camera interface up to 32MHz (monochrome) or 10MHz (colour). Up to 20 serial communication interfaces: USART, IrDA, I²C, SPI, LIN, CAN, USB, SDMMC, SWPMI. Serial Audio Interfaces. True random number generator. CRC calculation unit. RTC with subsecond accuracy and hardware cal***ar. 96-bit unique ID. Full access to all GPIO with ST Zio connector (Arduino Uno v3 connectivity support). ST morpho extension pin headers for access to all GPIO. ST-LINK/V2-1 debugger/programmer with SWD connector. Flexible board power supply. USB OTG or FS Device with micro-AB connector. 3 x LEDs: Power LED, USB communication, User LED. User and Reset pushbuttons. 32.768 KHz crystal oscillator. Energy benchmark: 217 ULPBENCH™ score. ARM mbed Enabled (mbed.org)
