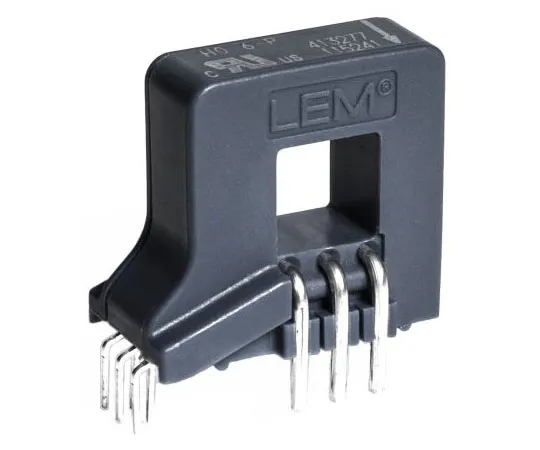

63-4689-31 LEM HO Series Open Loop Current Sensor, -20 → 20A nominal current, 19 → 25mA output current HO 6-P-0000
Product Description
Product Model: 63-4689-31Product Brand: LEM Features HO […]
Contact Us
Product Details
Product Model: 63-4689-31
Product Brand: LEM
Features
- HO-P Series. LEM HO-P series multi-range current transducers for the electronic measurement of current. The HO-P series can measure dc, ac and pulsed current with galvanic separation between the primary and the secondary circuit. Features and Benefits. Hall effect measuring principle. Low power consumption. Fixed offset and sensitivity. Small size and space saving. High immunity to external interference. Suitable for industrial applications. Factory calibrated
Spec
- Quantity：1piece
- Sensor Technology : Open Loop
- Output Current Range : 19 → 25mA
- Supply Voltage : 4.5 → 5.5 V
- Mounting Type : Panel Mount
- Frequency Bandwidth : 250 kHz
- Bore Size : 8 x 8mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +105°C
- Depth : 12mm
- Height : 20.9mm
- Width : 23.94mm
- CODE No.:138-3456
