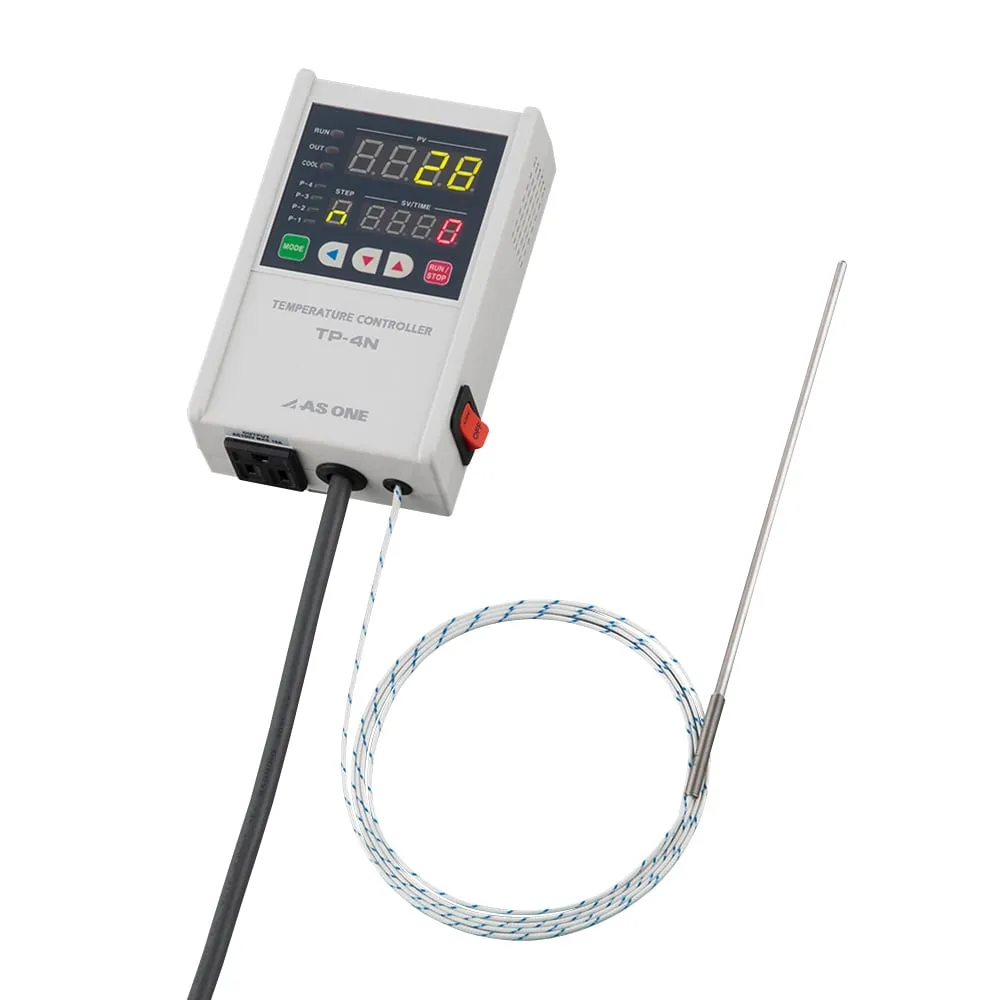

1-5825-21-57 Digital Temperature Controller (with Program Function) -100~+600°C with Chinese Calibration Certificate TP-4NK
Product Description
Product Model: 1-5825-21-57Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5825-21-57
Product Brand: AS ONE Corporation
Features
- Temperature control is ON/OFF control system.
- The temperature display adopts PV/SV 2-stage display in which the measured value and set value can be seen at a glance to prevent setting errors.
- Equipped with program function, it is possible to set up to 8 steps and 4 patterns.
- Forward and reverse operation can be switched.
- Equipped with circuit protector, alarm output function and sensor abnormality detection function.
Spec
- Set Temperature (°C): -100~+600
- Minimum display unit (°C): 1
- Temperature display accuracy: ±0.5% (FS) ±1digit or 3°C, whichever is greater.
- Temperature Control System: ON/OFF Control
- Temperature Setting Display: Sheet Key Touch System/PV/SV Digital Two-Stage Display
- Sensor Type: K Thermocouple (Φ4 x 200 mm)
- Connection Capacity: 100 VAC 50/60Hz MAX12A (Resistive Load)
- Additional function: Program function/8-step 4-pattern
- Safety Functions: Circuit Protector (15 A), Alarm Output Function, Sensor Abnormality Detection
- Power: 100 VAC 50/60Hz
- Body Size: 95 x 150.6 x 48.5 mm (Excluding Protrusion)
