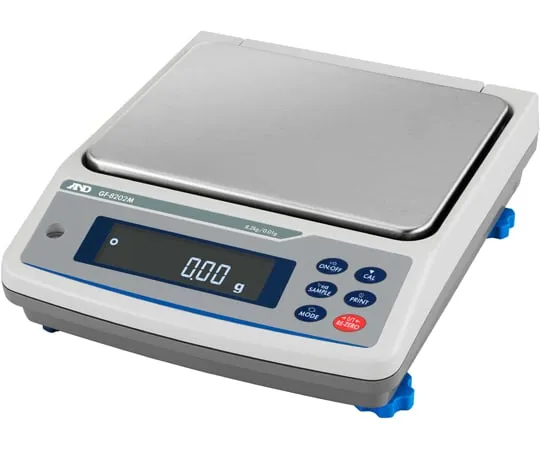

65-2770-95-20 Dustproof/Waterproof Medium Grade Balance 8.2 kg x Minimum Display 0.01 g Proofing Certificate GF-8202M
toner

65-2770-95-20 Dustproof/Waterproof Medium Grade Balance 8.2 kg x Minimum Display 0.01 g Proofing Certificate GF-8202M

model: 65-2770-95-20
brand: A&D
category: toner

Product Description

Product Model: 65-2770-95-20Product Brand: A&D Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 65-2770-95-20
Product Brand: A&D

Features

  • Dustproof and waterproof IP65 allows you to measure even in a dusty environment or a sample with water droplets without worry. The measuring dish and plate holder and the rear part of the body frame can be removed, so it is easy to clean and clean.
  • It has a shock absorber mechanism on the back side of the measuring plate to reduce the impact on the sensor.
  • ISD [Impact Shock Detection] when the production line is installed: When an impact is applied to the measuring plate, a four-step warning display and a buzzer are displayed.
  • FRD [Flow Rate Display] for liquid metering such as pump flow rate: Calculates the change in load as "flow rate". High precision flow rate measurement is possible with a single thread take-up.
  • ECL [Electronically Controlled Load] for checking the repeatability of the balance and the minimum measurement value: A & D's unique internal mechanism calculates the repeatability of the balance (only 90 seconds) without using external weights.
  • 2ch output standard of RS-232C interface (D-Sub9P male)/USB interface (Mini B type).
  • With statistical calculation function and specific gravity measurement function.
  • It comes with a balance ***r, a security function to restrict the clock settings, a clock function, and a data memory function.

Spec

  • Weighing capacity: 8.2 kg
  • Minimum display: 0.01 g
  • Repeatability (standard deviation): 0.01 g
  • Linearity: ±0.03 g
  • Stability time (typical value in FAST settings): approximately 1.5 seconds
  • Power: AC adapter (included)
  • Measuring tray dimensions: 270 (W) x 210 (D) mm
  • Material of measuring plate: SUS316
  • External Dimensions/Mass: 300 (W) x 355 (D) x 111 (H) mm/Approx. 8.3 kg
  • Accessories: Owner's Manual, AC Adapter, USB Cable (1.8 m), Display Cover, Simple Windshield
