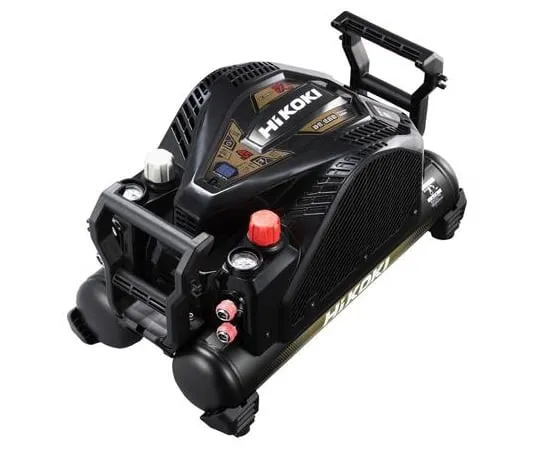

64-7817-74 High Pressure Air Compressor (Tank 12 L) AC100V/1.5 kw EA116HD-2F
model:
64-7817-74
category:
laboratoryinstruments
Product Description
Product Model: 64-7817-74 Features Realization of optim […]
Contact Us
Product Details
Product Model: 64-7817-74
Features
- Realization of optimum structure by computer analysis. Thanks to the high durability of various parts, it can be ***d for a long time with sustained performance. (Notice of the inspection time/1200 hours)
- Connecting the high-pressure air tank (EA116Z-21) can significantly increase the amount of work and support work that consumes a large amount of air.
- Be sure to *** a special hose (EA116Z-22) to connect the compressor to the high-pressure auxiliary tank (EA116Z-21). (Other hoses cannot be ***d.)
- You can limit the number of times you drive, which will prevent theft.
Spec
- HiKOKI: Model number: EC 1445 H3 (CTN)
- power supply : AC100V
- Motor rating Output: 1500 W
- Motor: DC Brushless Motor
- Maximum pressure in the air tank: 4.4 MPa (44.9 kgf/cm2)
- Rotational Speed: 2.300 Times/Minute (in Power Mode)
- Discharge air volume: 0.7 MPa (7.1 kgf/cm2): 95 L/min 2.3 MPa (23.5 kgf/cm2): 80 L/min
- Tank capacity: 12 L
- Size: 328 (W) x 615 (D) x 337 (H) mm
- Weight: 15.8 kg
- Cord: 3 Cores/2.5 m/3P Foldable Plug (With Cord Hook Convenient for Storage)
- Noise Level: 59 dB (silent Mode: 55 dB)
- Air Outlet: Single General Pressure: Coupler 2 pieces High Pressure: High Pressure Coupler 2 pieces
- Engine: DC Brushless Motor
- With Security Function
- Top class low noise
- Efficient air filling with a powerful DC brushless motor
- The filter can be easily maintained with the new air intake mechanism (dust adhering to the filter can be removed by removing the top cover).
- Three Operation modes according to your work (Power Mode/Auto mode (new V mode)/silent mode)
- Vibration-Proof structure with original rubber foot shape and body center of gravity balance
- Maximum pressure: 0.8 MPa (approx. 8.2 kgf/cm2) High pressure: 2.5 MPa (approx. 25.5 kgf/cm2)
