Features

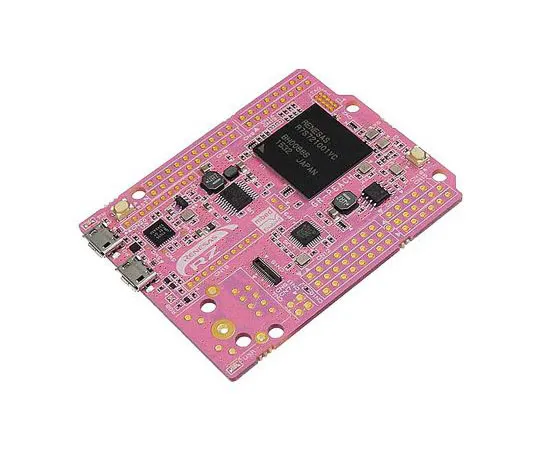

• GR-PEACH RZ/A1H Development Boards. The GR-PEACH is a development board with an Arduino™ Uno format for the Renesas RZ/A1 group of 32-bit ARM Cortex-A microprocessors. GR-PEACH is ARM mbed-enabled™ which provides on-line development tools 'in the Cloud' via the mbed website. The GR-PEACH Normal part is part-populated with interface connectors. The GR-PEACH Full part is fully populated with a range of connectors. Renesas RZ/A1H Features. 400MHz R7S721001VLBG Cortex-A9 MPU with 10MB RAM, FPU and NEON. 32KB Instruction cache, 32KB Data cache and 128KB L2 cache. OpenVG1.1 2D graphics accelerator. Video display controller. Distortion correction engine for display. JPEG Codec unit. CMOS Camera interface. Serial sound interfaces, sound generator and CD-ROM decoder. Power modes: Sleep, Software Standby, Deep Standby, Module Standby. GR-PEACH Board Features. On-board MX25L6435EM2I-10G 8MB QSPI Flash memory. Micro-B USB Host/Function connector. Micro-B USB mbed debug/program connector. MicroSD card slot. RJ45 socket for 10/100 Ethernet connection ( FULL only). Hirose connector for Rohm BP3595 WiFi module ( NORMAL only). Pads for 10-pin ARM CoreSight 10 JTAG connector. Pads for XBee wireless module headers. Pads for Auxiliary Power connector. Arduino UNO R3 Shield compatible headers ( FULL only). GR-PEACH expansion headers ( FULL only). Reset and User pushbuttons. Power and User LEDs. User RGB LED. Power supply: +5Vdc via USB sockets, +5.5 to +16Vdc via Arduino/Aux Power connector. Dimensions: 53.34 x 67.58mm. RS Product Codes. 136-9536 136-9536 GR-PEACH NORMAL Part-populated with connectors. 136-9537 136-9537 GR-PEACH FULL Fully-populated with connectors
