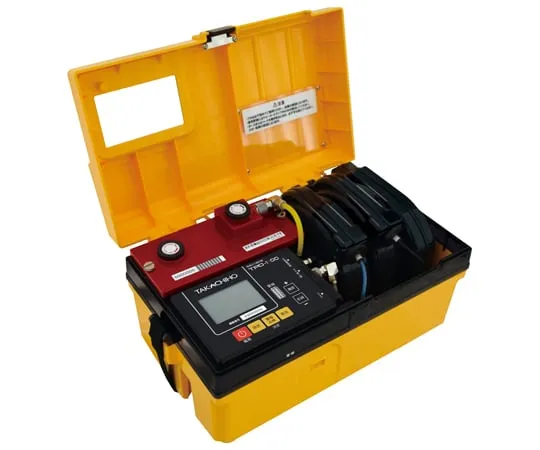

65-2764-86 Hazardous gas detectors (oxygen, methane, carbon monoxide, hydrogen sulfide) TPD-1100
Product Description
Product Model: 65-2764-86Product Brand: TAKACHIHO Featu […]
Contact Us
Product Details
Product Model: 65-2764-86
Product Brand: TAKACHIHO
Features
- Replace the sensor at hand.
- No inspection period required.
- Unit replacement system (4 sensors and suction pump installed).
- You don't have to keep it at the factory, and you can easily change the unit at your hand. It needs to be replaced every year.
- The water trap has finger pads.
- Equipped with four types of gases (oxygen, methane, carbon monoxide, hydrogen sulfide), temperature and humidity.
- 4000 measurement logs are automatically saved. You can transfer data to a USB flash drive and manage it on a computer.
- This function automatically detects the abnormality of the self-diagnosis function body. Sensor abnormality and measurement abnormality are displayed on the screen.
- Alarm lamps are also mounted on the outside frame of the detector. In the case of noise or when measuring with the lid closed, the alarm lamp on the outer frame also notifies the surroundings of abnormalities.
- The temperature and humidity display is mounted on the gas detector. You can choose the mode setting of the heat stroke warning, and it will be informed by the guidance from the alarm.
- Waterproof and Dustproof Standard IP67. Equipped with a new external alarm with 10 m drop durability. The visual angle of the alarm lamp is expanded to all directions, and a safety function for early detection of abnormalities is added. Alarm sound, alarm lamp, and voice guidance are ***d to inform you of abnormalities.
- Equipped with gas introduction pipe and external alarm 10 m.
- * You can *** a USB thumb drive to extract measurement data in CSV format. However, if you want to print measurement data in a format such as a measurement record table, you need separately sold data management software.
Spec
- target gas
- [Oxygen]
- Measurement principle: Diaphragm galvanic cell system
- Measurement range: 0.0~25.0VOL%
- Accuracy of instruction: ±0.7VOL% or less (JIS8201 compliant)
- Display units: 0.1%
- Alarm operating point: 18.0VOL%
- [Combustible gas (methane)]
- Measurement Principle: Contact Combustion Method
- Measuring range: 0~100%LEL
- Accuracy of instruction: within ±5%LEL
- Display Units: 1%LEL
- Alarm operating point: 30%LEL
- [Carbon Monoxide]
- Detection principle: potentiostatic electrolysis system
- Measurement range: 0~100ppm
- Accuracy of indication: within ±10ppm
- Display Units: 1ppm
- Alarm operating point: 50ppm
- [Hydrogen Sulfide]
- Detection principle: potentiostatic electrolysis system
- Measurement range: 0.0~30.0ppm
- Accuracy of indication: within ±1.5ppm
- Display unit: 0.5ppm
- Alarm operating point: 10.0ppm
- Response time: 90%, response/40 seconds or less (when gas introduction pipe 10 m is installed)
- Gas sampling system: Continuous automatic suction system
- Operating temperature and humidity range: -10~45°C 95%rh or less
- Alarm system: Alarm lamp and buzzer (both body and external alarm) + Voice system (external alarm)
- Power supply: 2 AA alkaline batteries 100 V±15 V AC (50/60Hz) * Rechargeable type AA nickel metal hydride batteries x 2 can be ***d.
- Continuous sampling time: 15 hours or more (Alkaline batteries/20°C without lighting)
- Insulation resistance: DC500V, 50 MΩ or more (between power receptacle and housing)
- Explosion-Proof Structure: Body/Sensor Unit Non-Explosion-Proof
- Operating conditions: Mainly measured air in manholes. It is temporarily installed and ***d in the vicinity of manholes outside.
- Dimensions: Body/W375 x H197 x D210mm, External Alarm/W53 x H83 x D23mm, Floater/Φ42 x H103mm
- Mass: Body/approx. 5.1 kg (including battery), external alarm/approx. 740 g (including reel), gas inlet pipe/approx. 660 g (including reel)
- Structure: Body/Droplet Proof IPX2, External Alarm/Waterproof Dust Proof IP67, Drop Endurance/10 m
- Save 4000 measurement logs
- With cal***ar function
- *Temperature and humidity are measured and displayed with an external alarm.
- *This product (TPD-1100) is basically a product that cannot be sold to sewerage related companies, water treatment plant related companies, telecommunications related companies, electric power related companies and industrial waste treatment companies.
