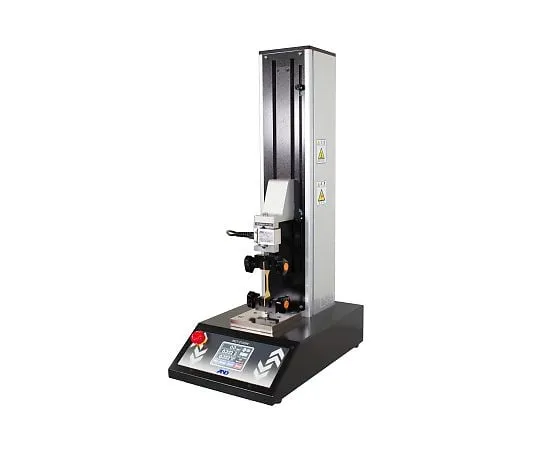

65-1918-66 Tabletop Tensile Compression Tester (Forstester) MCT-2150W
Product Description
Product Model: 65-1918-66Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 65-1918-66
Product Brand: A&D
Features
- I see strength! Tabletop tensile compression test with high performance and low test force type (test force display resolution: 0.001 N).
- Color touch panel provides good visibility and easy operation.
- It comes with a high-precision load cell, and you can *** it as soon as you turn on the power.
- Test speed can be easily set digitally.
- Displacement display is provided as standard.
- Comes standard with PC installation software.
- The jig (attachment) ***d in the force gauge and push-pull gauge can also be ***d. *M6 screws are ***d when using the M6 onesideadapter.
- It is connected to the mini printer AD-8126 (sold separately) and can print out the maximum load and displacement.
- Space-saving design that can be ***d on a desk.
- A force measuring machine that replaces the force gauge and push-pull gauge.
- Can handle a variety of material tests.
Spec
- Maximum test power capacity: 500 N
- Crosshead stroke: 370 mm
- Effective stroke (when using standard parallel clamping jaw): 285 mm
- Crosshead speed range: 10 to 300 mm/min: Within 5% of the set value for ± (under no load)
- Crosshead speed and test force capacity: Can test up to maximum test force capacity at all speed ranges
- Displacement display: 0.00 mm (minimum 0.01 mm: 0.1 mm above 100 mm)
- Test force measurement accuracy (when using 500 N load cell): 500 N to 50 N/± 0.2% F.S, 50 N to 5 N/± 2% of indicated value, 5 N or less/± 0.1 N or less
- Test force measurement accuracy (when using 50 N load cell): 50 N to 5 N/± 0.2% F.S, 5 N to 0.5 N/± 2% of indicated value, 0.5 N or less/± 0.01 N or less
- Test force indication resolution (when using 500 N load cell): 0.01 N (0.1 N indication when exceeding 100 N)
- Test force indication resolution (when using 50 N load cell): 0.001 N (0.01 N indication when exceeding 10 N)
- external dimensions/Mass: 250 (W) x 405 (D) x 711 (H) mm/18 kg
- Accessories: Owner's Manual, 500 N Load Cell, 50 N Load Cell, PC Software (CD-ROM: MSAT-Lite), USB Cable
- It is not waterproof.
- *It is not waterproof.
