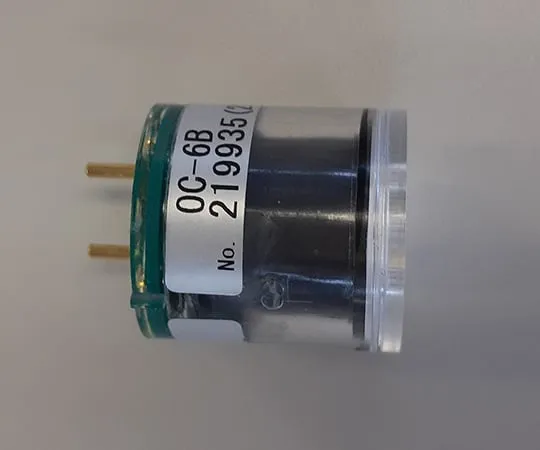

65-1915-50 Oxygen sensor (galvanic cell type) OC-6B
Product Description
Product Model: 65-1915-50Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 65-1915-50
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- It can be measured in inert gases such as nitrogen and carbon dioxide.
- It is not affected by acid gases such as hydrogen sulfide and sulfur dioxide.
Spec
- Gas to be detected: Oxygen (O2)
- Detection principle: Galvanic battery type
- Detection range: 0~100%
- Response time: 90% Response time: 10 seconds or less
- Reference power (span): 23~45 mV (20°C)
- Operating temperature range: -10~45°C
- Body Dimensions: Φ20 x 20.8 mm
- Body mass: Approx. 10 g
Related product recommendations
You may also be interested in the following products
toner

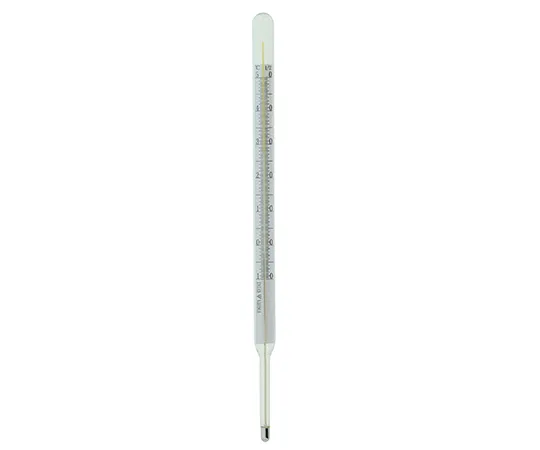

61-4426-65 ［Discontinued］Mercury Thermometer for Pettenkofer 080550-11
