64-5197-39 constant temperature shaking water bath T-N22S
Product Description
Product Model: 64-5197-39Product Brand: THOMAS KAGAKU C […]
Contact Us
Product Details
Product Model: 64-5197-39
Product Brand: THOMAS KAGAKU Co., Ltd.
Features

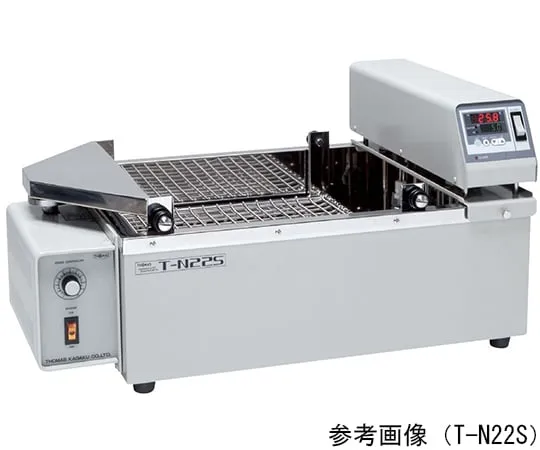

- This is a small and lightweight Water Bath that is known for its constant temperature shaking. This is a basic unit with a simple configuration that is easy to ***.
- The temperature control system ***s digital temperature display and setting PID control to provide high performance and complete safety equipment.
- The easy to *** shaking rack is wide enough and the universal type spring rack makes it easy to attach and take out containers of different sizes such as test tubes and flasks.
- Number of flasks: 100 mL Erlenmeyer Flasks (16/1), 200 mL Erlenmeyer Flasks (9/1), 300 mL Erlenmeyer Flasks (9/1), 500 mL Erlenmeyer Flasks (5/1), Test Tubes 16 x 15=240/1
- Shallow Rack Shallow shake racks, such as short containers and centrifugal tubes, are now on sale.
Spec
- External Dimensions: W620 x D390 x H320mm
- Tank Dimensions: W480 x D350 x H150mm
- Effective dimensions in the tank: W400 x D350 x H150mm
- Capacity: 20 L
- Shake: 12~110 beats/min (50 Hz)
- Shaking Width: 20~40 mm (3 Stages Variable)
- Shaking motor: Electronically controlled motor 25 W
- Shaking Rack Dimensions: W320 x D300 x H60mm (Universal Type Spring Rack)
- Temperature range: room temperature +10°C to +60°C
- Temperature stability: ±0.1°C
- Temperature Control: Digital Temperature Indicator Controller PID Control System
- Heater: Sheath Wire Type 500 W x 2
- Stirrer: jet stirring system
- Safety devices: prevention of heater burning, prevention of temperature rise in tank, power f***
- Material: Inner Tank and Rack/Stainless Steel (SUS-304), Exterior/Steel Plate Baked Finish
- Power: 100 VAC 11 A 50/60Hz, 2 m power cord
- Weight: approx. 20 kg
- Optional: Shallow shake rack (Examples: T-N22 S Regular Rack Type, T-N22 S Shallow Rack Type, T-N22 S Regular Rack Type + Shallow Rack Type)
