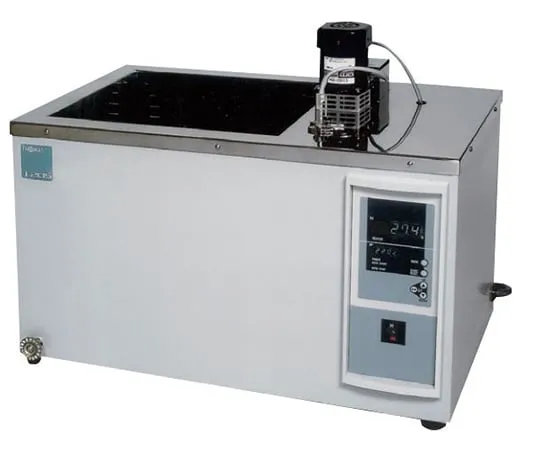

64-5197-05 Constant Temperature Oil Bath T-205
Product Description
Product Model: 64-5197-05Product Brand: THOMAS KAGAKU C […]
Contact Us
Product Details
Product Model: 64-5197-05
Product Brand: THOMAS KAGAKU Co., Ltd.
Features
- With a capacity of 36 L and a large effective space, this thermostatic Oil Bath is well known for its excellent temperature stability.
- Safety
- The alarm function of the control unit detects temperature rise in the tank, heater disconnection, triac short, temperature sensor abnormality, and liquid level drop, and forcibly stops the heater and agitator.
- The power supply is equipped with a ground fault breaker.
- Timer operation can be selected.
- MAX Auto start/stop operation can be set for 99 hours and 59 minutes.
Spec
- External Dimensions: W640 x D380 x H500mm
- Tank Dimensions: W440 x D300 x H300mm
- Effective dimensions in the tank: W350 x D300 x H300mm
- Capacity: 36 L
- Temperature range: room temperature +10°C to +200°C
- Temperature Control: Digital Temperature Indicator Controller PID Control System
- Temperature stability: ±0.05°C (using 120°C silicon oil)
- Distribution accuracy: ±0.2°C (using 180°C silicon oil)
- Heater: Sheath wire type 2 kW
- Stirrer: Vertical Propeller Stirred 22 W Condenser Motor
- Safety devices: ground fault circuit breaker, self-diagnostic function (Overtemperature in tank, heater disconnection, drop in liquid level, temperature sensor abnormality, triac short)
- Timer: Operation with auto-start or auto-stop timer (MAX99 hours 59 minutes)
- Material: Inner Tank/Stainless Steel (SUS304), Exterior/Steel Plate Baked Finish
- Power: 100 VAC 20 A 50/60Hz, Power cord 3 m, Supply power capacity 30 A * Power plug is not included.
- Accessories: Stainless Steel Adjustable Height Shelf Plate x 1 Set
- Weight: approx. 25 kg
- Optional: Stainless Steel Lid
