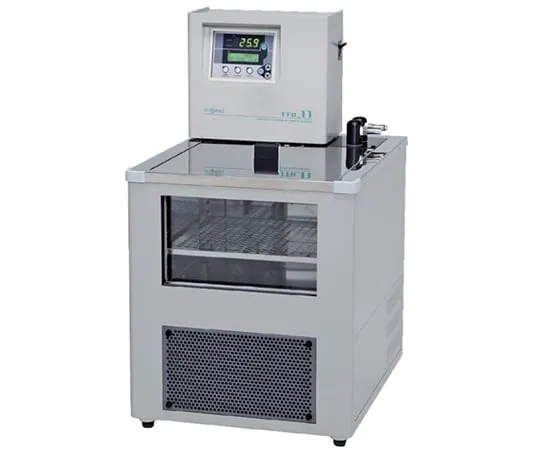

64-5196-72-90 【Global Model】 Low Temperatue Thermostatic Water Bath TRL-11 AC220V TRL-11LM LM AC220V
Product Description
Product Model: 64-5196-72-90Product Brand: THOMAS KAGAK […]
Contact Us
Product Details
Product Model: 64-5196-72-90
Product Brand: THOMAS KAGAKU Co., Ltd.
Features
- The size of the observation window remains the same, but the height is kept at 50 mm to make it easier to observe on the table.
- Equipped with a wide water tank and a circulating pump that doubles as an agitator, it can be ***d for multiple purposes, such as testing in the tank and circulating to other equipment.
- The circulating IN-OUT is now movable, and the IN-OUT direction can be changed according to the installation environment.
- The specially designed temperature controller keeps the medium fluid stable and constant temperature by PID control with a microcomputer.
- Features such as auto-start and auto-stop timers and various safety devices make it safe and convenient to ***.
Spec
- External dimension：W405 X D495 X H700mm
- Inner dimension：W300X D400 X H200mm
- Effective inner dimension：W300 X D200 X H200mm
- Temperature range：0℃～+80℃
- Temperature control：Temperature digital indicating PID control
- Temperature accuracy：±0.05℃
- Refrigerator：Air cooling 130W
- Refrigerant：HFC134a
- Cooling ability：about 230W(at 20℃ 50Hz)
- Circulation pump：20W motor Combined agitator pump function、Max.lift head 2.0m Max.head 10L/min.
- Safety device：Earth leakage breaker、HIGH ALARM, LOW ALARM, LOW LEVEL Alarm、Refrigerator protection thermostat, Temperature sensor failure alarm
- Timer：Auto Start timer or Auto Stop timer
- Material：Inner basin Stainless steel (SUS-304)、External housing Steel plate with baked enamel finish
- Accessory Lid : 1 peace
- Power supply：AC 220V single-phase 7A
