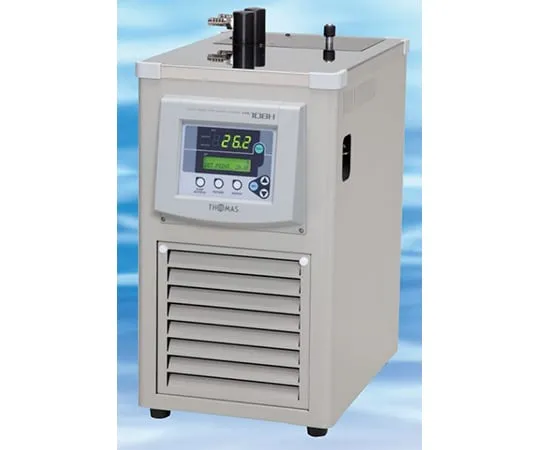

Spec

• External Dimensions: W 265 x D 375 x H 455 mm
• Tank Inner Dimensions: W 180 x D 110 x H 180 mm
• Content: 3 L
• Temperature range: -10 °C to + 80 °C
• Temperature Stability: ± 0.05 °C (in Tank)
• Temperature Control: Digital Temperature Indication Controller PID Control System
• Timer: auto start timer, auto stop timer (settable time 99 hours 59 minutes)
• Heater: Sheathwire Type 500 W
• Refrigerator: Air-cooled 130 W HFC -134 a
• Cooling Capacity: About 180 W (155 kcal/h Water Temperature + 10 °C 50 Hz)
• Stirrer: By jet of discharge liquid
• Circulation Pump (Combined Use with Stirring): 20 W Magnet Pump
• Maximum lift: 2 m
• Maximum flow rate 9L/min
• Maximum Discharge Pressure 0.02 Mpa
• Circulation IN-OUT: Outer Diameter φ 12 Hose Port (Rp 3/8)
• Safety Device: Leakage Breaker, Self-Diagnosis Function (HC: Excess Temperature Rise Prevention, LC: Low Temperature Prevention, Low Water Level, Refrigerator Protection Circuit, Temperature Sensor Anomaly, Refrigerator Pressure Anomaly, Error Setting Prevention)
• Materials: Inner Tank: Stainless Steel (SUS -304), Exterior: Steel Plate Baked Finish
• Accessory: Bakelite Lid x 1
• Power: 100 VAC 9 A 50/60 Hz, 2 m power cord
• Weight: approx. 29 kg
• Optional: The rubber feet can be changed to casters.
• *When the temperature in the tank is 40 °C or higher, the chiller is forcibly stopped by the action of the chiller protection circuit. Therefore, chillers cannot cool the tank within the temperature range of 80 °C to 40 °C.
