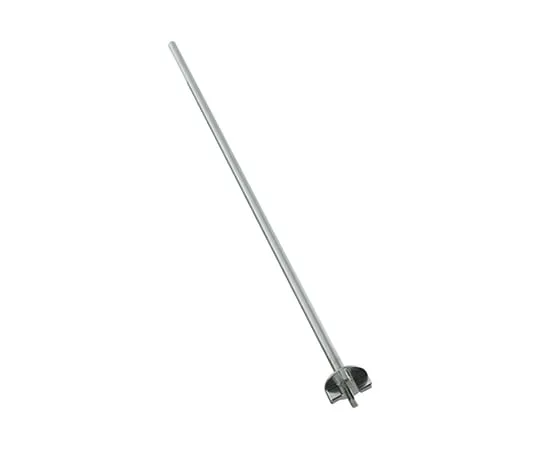

64-5069-70 Bernoulli Flow Stirrer BEAG K Type KGR-D030-L500
Product Description
Product Model: 64-5069-70Product Brand: MONOVATE Co., L […]
Contact Us
Product Details
Product Model: 64-5069-70
Product Brand: MONOVATE Co., Ltd.
Features
- When you want to stir in a lab scale such as a beaker or measuring cup! Bernoulli flow stirrer (single item) that can be attached to a chuck-type tabletop stirrer.
- Suitable for small amount of stirring of 1L or less such as beaker.
- If the viscosity is about water, it can stir ~15 L.
- Can be attached to a chuck-type laboratory tabletop stirrer that supports a shaft diameter of φ8mm.
- The total length is 500 mm, and the height can be adjusted according to the height of the stirring object and the liquid volume.
- The stirrer ***s the K-type Bernoulli flow stirrer BEAG, which reduces air entrainment and foaming.
- Gently agitates with low shear.
- Since only the right side of the agitator is rounded, the left rotation results in even lower shear.
Spec
- Material: Stirring shaft SUS 304, Stirring body SUS 316
- Shaft diameter: phi 8 mm
- Stirrer diameter: phi 30 mm
- Weight: 0.22 kg
- Total length: 500 mm
- Amount of liquid that can be stirred: about 15 L at the same viscosity as water
- Application for Design Registration Petition 2020 - 005192
- *This product is designed specifically for small-diameter long lengths. Compared to the other Bernoulli BEAG series agitators, it is inferior in terms of stirring power.
- *This product is only for stirring shafts (agitators). Prepare a separate agitator body with a shaft diameter of 8 mm.
