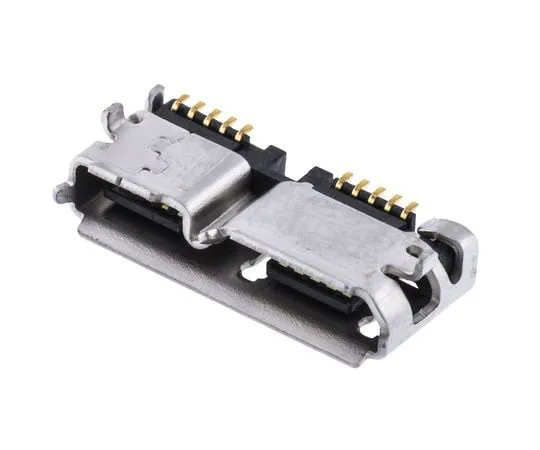

63-4688-45 Hirose B 3.0 Micro USB Receptacle, Right Angle ZX360D-B-10P(30)
Product Description
Product Model: 63-4688-45Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-4688-45
Product Brand: Hirose
Features
- ZX360 Micro USB3.0. The Hirose ZX360 series of Micro-USB connectors designed to support 3.0 specifications. Providing up to 5 Gbit/s high-speed data transmission. The ultra-compact connectors feature a unique latching mechanism providing a definite tactile click that continues with frequent mating cycles. Features and Benefits. Compact design Latching mechanism Supports high-speed USB 3.0 transmission 5 Gbit/s data Backward mating with USB 2.0. Applications. Smartphones MP3 players GPS Digital cameras
Spec
- Quantity：1bag(5pieces)
- G***er : Female
- Mounting Type : PCB Mount
- USB Type : B
- Body Orientation : Right Angle
- USB Version : 3.0
- Current Rating : 1A
- Voltage Rating : 30 V ac
- Series : ZX360
- Contact Material : Copper Alloy
- Termination Method : Solder
- Minimum Operating Temperature : -30°C
- Maximum Operating Temperature : +85°C
- CODE No.:136-2689
