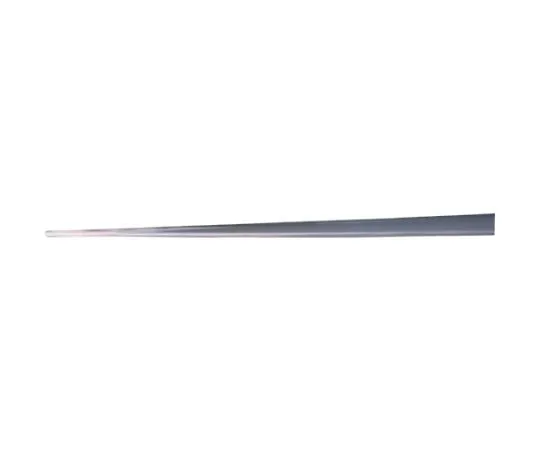

64-5053-67 VP Pipe 150 4.0 m VP1F4
Product Description
Product Model: 64-5053-67Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 64-5053-67
Product Brand: SEKISUI
Features
- The inner surface is very smooth, the frictional resistance is low, and it is hard for slime to stick.
- for many years.
- Thick VP pipe can be applied to any drainage system.
- Can be ***d for drainage facilities such as miscellaneous drainage, sewage and rainwater drainage in buildings. Can also be ***d as a vent pipe.
- Please be careful when using the adhesive.
- Please *** standard construction method.
- Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- Pressure resistance of plastic products decreases as temperature rises.
Spec
- Nominal diameter (mm): 150
- L(mm):4000
- D(mm):165
- t(mm):8.9
- Material: Rigid Vinyl Chloride Tube (PVC)
- Color: Gray
- VP Pipe Nominal Diameter: 150 mm
- D:165mm
- t:8.9mm
- L:4000mm
- Maximum Operating Temperature: 50°C
- We also have HI pipes (impact resistant).
- Material: Rigid Vinyl Chloride Tube (PVC)
- Color: Gray
- Use TS fittings
- Use a DV joint for drainage (no pressure).
- 4.0M Standard Product
- Material/Finish: Rigid Polyvinyl Chloride Tube
- JIS K6741 Standard
- Country of origin: Japan
- Securities Code: 850-6813
Related product recommendations
You may also be interested in the following products
gasmonitors
64-3449-49 430 Solid Erecta Shelf W 606 x D 614 x H 1384mm ( P ) with DB 3 stages LSS610P1390W3
model: 64-3449-49
brand: ERECTA International Corporation
gasmonitors
64-3468-39 304 Solid Erecta Shelf W 1822 x D 461 x H 1384mm (PS) without DB 3 stages MSS1820SPS1390N3
model: 64-3468-39
brand: ERECTA International Corporation
gasmonitors
3-3925-21 Fume Hood (Dry Type Scrubber Top Placement Type) Deep 1200 x 980 x 2550 mm ABD-1200TUC
model: 3-3925-21
brand: AS ONE Corporation
gasmonitors

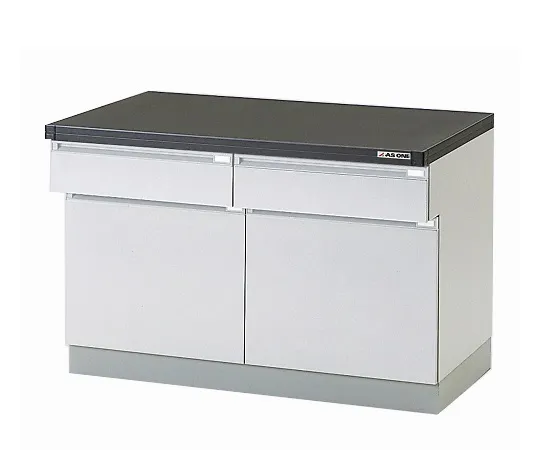

3-5693-11 ［Discontinued］Side Laboratory Bench Wooden Type 450 x 750 x 800 AC1O-457
