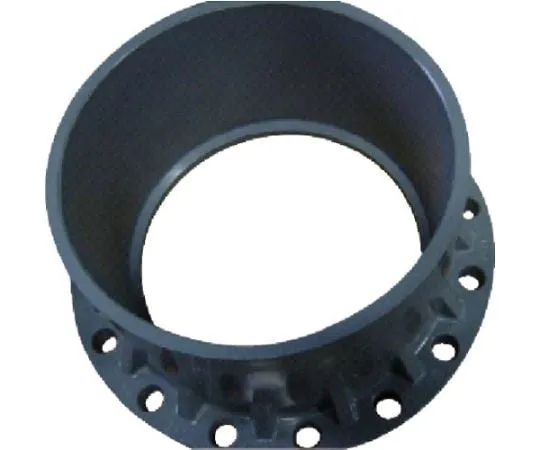

64-5053-54 TS Flange JIS10K PVC 300 A TSF3H
Product Description
Product Model: 64-5053-54Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 64-5053-54
Product Brand: SEKISUI
Features
- PVC flange with excellent corrosion resistance. Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
- Please be careful when using the adhesive.
- Please *** standard construction method.
- Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- Pay attention to the tightening torque.
Spec
- Nominal Diameter A: 300
- Nominal Diameter B: 12
- Inner diameter (mm): 298
- Outer Diameter (mm): 445
- Thickness (mm): 32
- Number of Bolt Holes (pcs): 16
- Bolt Hole Diameter (mm): 25
- Working pressure (K): 10
- Bolt Hole Center Diameter (mm): 400
- Maximum Operating Temperature: 60°C
- Number of Holes (pcs): 16
- Material: Rigid Vinyl Chloride (PVC)
- PVC Pipe Nominal Diameter: 300
- Size: 300 A
- Nominal Diameter: 12B
- Maximum Allowable Pressure: 1.0 MPa (at20°C)
- JIS10K Specification
- Flange dimensions conform to JIS10K (JISB2210).
- Material/Finish: Hard Polyvinyl Chloride (PVC)
- Note:Please be careful when using the adhesive.
- Note:Please *** standard construction method.
- Note:Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- Note:Pay attention to the tightening torque.
- Country of Origin: Taiwan
- Securities Code: 850-5733
*This product might require extra fees.
