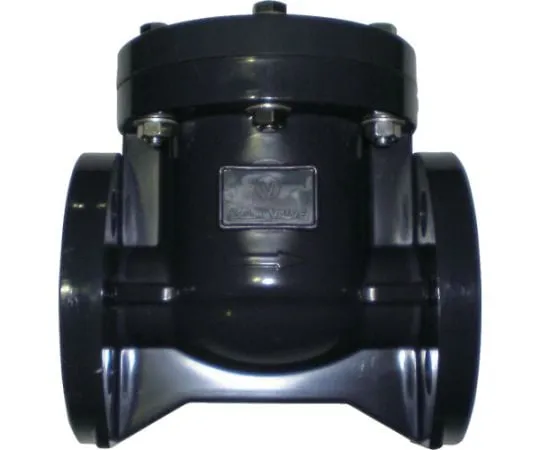

64-5053-53 Swing Chuck Valve PVC/EPDM JIS10K Flange 200 A SCV2H
Product Description
Product Model: 64-5053-53Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 64-5053-53
Product Brand: SEKISUI
Features
- Swing chuck valve made of resin.
- Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- The body and parts are made of hard polyvinyl chloride (PVC) and have excellent chemical resistance.
- Fluid: In the case of mixing slurry, slurry may bite into the chuck.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
Spec
- Material: Body Hard Vinyl Chloride Tube (PVC) Packing: EPDM
- Flange Type Nominal Diameter: 200 mm
- H:494mm
- L:500mm
- Maximum Operating Temperature: 50°C
- swing type
- The O-ring can be changed to FPM specifications, so please choose according to your usage conditions.
- Material: Body Hard Vinyl Chloride Tube (PVC) Packing: EPDM
- Material/Finish: Body Material: PVC
- Seal Material: EPDM
- Country of Origin: Taiwan
- Securities Code: 850-6441
- There is a separate shipping fee for Hokkaido, Okinawa and remote islands.
*This product might require extra fees.
