Spec

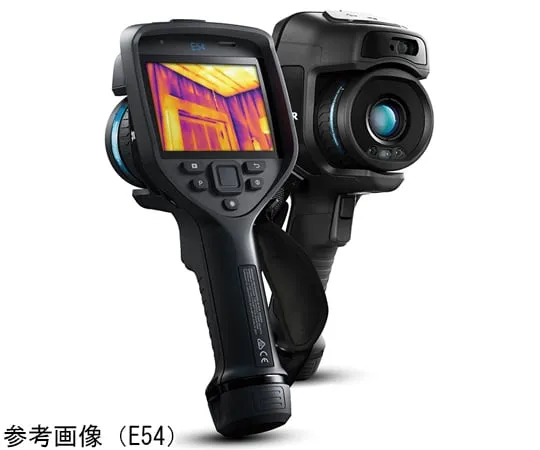

• Model name: FLIR E 54
• Thermal Image Resolution (Visible): 320 x 240 (5 MP)
• Minimum imaging distance (at MSX): 24 degrees 15 cm (50 cm)
• Measured temperature range: -20 to 650 degrees C
• Field of view/instantaneous field of view (IFOV): 24 degrees/1.75 mrad
• Spot/Box: 3/1
• Measure (area/distance): x
• Digital zoom: 1 -4 x continuous
• Detector: Uncooled microbolometer
• Temperature resolution (NETD): Wide angle/0.03 deg C standard/0.04 deg C telephoto/0.05 deg C @ 30 deg C (* 0.04 deg C for TA 410 FE -54 only)
• Sensitivity wavelength range: 7.5 ~ 14 microns
• Camera Frame Rate: 30 Hz
• Lens recognition: Auto CalTM (* Manual for TA 410 FE -54 only)
• LCD: 4 inches 640 x 480 IPS LCD Dragontrail glass Automatic screen rotation
• Color palette: Iron, Gray, Rainbow, Arctic, Mule, Rainbow HC
• Image modes: Infrared, Visible, Super Fine Contrast (MSX ®), Picture-in-Picture
• UltraMaxTM: Yes (Image integration processing with FLIR Tools +) (* TA 410 FE -54 only x)
• Accuracy: +/- 2 degrees C or +/- 2%
• Measurement preset: spot without measurement (center/hot/cold) 2 ***r presets (* TA 410 FE -54 spot without measurement (center/hot/cold))
• Alarm: Upper, Lower, Section, Insulation, Condensation, Voice
• Still images (number of images saved) JPEG (with temperature data)/SD card
• Storage of videos with temperature information: PC (using FLIR Tools +), streaming: Wi-Fi (i-app)/USB (PC)
• Temperature information No video storage: SD card, streaming: Wi-Fi/app or USB/PC
• Communication interface: PC connection: USB, apps: Wi-Fi, Bluetooth: METERLiNK, video output: USBTypeC
• Battery life: 2.5 hours (@ 25 degrees C) Lithium-ion battery
• Operating/Storage temperature range: - 15 ~ 50 C/- 40 ~ 70 C
• Shock/Vibration/Protection Performance and Safety Standards: 25 g/IEC 60068 -2 -27, 2 g/IEC 60068 -2 -6, IP 54/IEC 60529: EN/UL/CSA/PSE 60950 -1
• Weight/Dimensions: 1 kg, 27.8 x 11.6 x 11.3 cm
• Standard Accessories: Camera body, 2 AC adapters (for battery charging/for camera), 2 batteries, battery charger, carrying case, lens cap, SD card, 2 handstrap brackets, lens cap strap, 3 cables (USB 2.0 A/Type C 1 m/USB Type C, HDMI Adapter/USB Type C 1 m), 1 screw, 1 torque wrench, 1 front protective cover, fastener for front protective cover, 3 straps (for list/battery charger/for camera)
