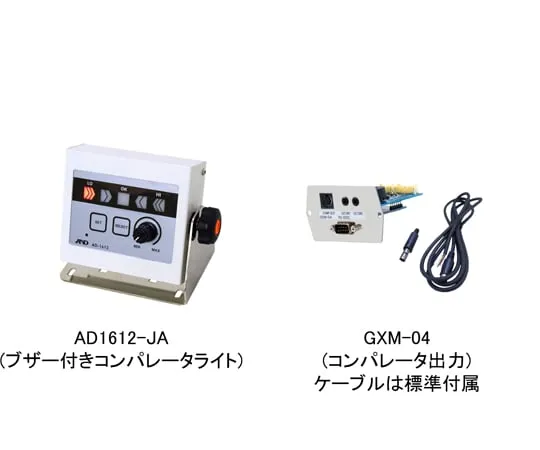

65-1694-53 Compressor Light GX-M Series Connection Parts Set with Buzzer AD1612-GX-M
Product Description
Product Model: 65-1694-53Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 65-1694-53
Product Brand: A&D
Features
- A & D medium weight balance GX-M series relay output is connected and ***d.
- It is convenient for sorting "less, a little less, OK, a little more, a lot" and "bigger, a little bigger, middle, a little smaller, a little smaller" by 5 steps.
- Comes with a 3-color LED light (red, yellow, and green) that is easy to see in the dark, and the light brightness can be set in 5 levels.
- The buzzer sound can be selected from 5 patterns + silence for each stage. When multiple units are ***d side by side, the sound can be divided by scale or by stage.
- The volume of the buzzer can be adjusted with the volume knob on the front of the unit.
- Comparator output for GX-M series (GXM-04) Standard included.
Spec
- Target model: GX-M Series
- Power Supply: AC Adapter (7.5 VDC, 15 V to, 500 mA)
- Power Consumption: Approx. 2.1 VA (LED on + buzzer max.)
- Operating temperature range: -10 to 40 °C (non-condensing)
- Display: 3-color LED [LoLo (Red)/Lo (Yellow)/OK (Green)/Hi (Yellow)/HiHi (Red)] 5-point output
- Buzzer Volume: Up to approx. 95 dB [* An optional AC adaptor (AX-TB 266 or AX-TB 294) is required to set the buzzer volume to the maximum level.]
- Attachment: Interface (GXM-04 with Cabled Connector (AX-KO 5692))
- Accessories: Owner's Manual, DC Cable, Rubber Foot, Comparator Output for GX-M (with Cable)
- *A separate item necessary for connection other than the balance itself is included.
- *When the GXM-04 is installed, the GX-M is not waterproof.
