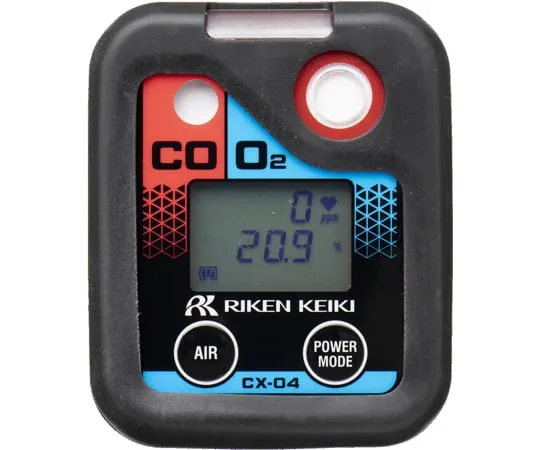

65-0500-41 Personal Oxygen/Carbon Monoxide Meter Rechargeable Battery Specification CX-04
Product Description
Product Model: 65-0500-41Product Brand: RIKEN KEIKI Co. […]
Contact Us
Product Details
Product Model: 65-0500-41
Product Brand: RIKEN KEIKI Co., Ltd.
Features
- Personal Type (Small)
- For two-component gas detection
- Sensor warranty 3 years (* Required is the manufacturer's inspection more than once a year.)
- Supports a wide temperature range (according to sensor specifications)
- Sturdy design (7m drop durability test cleared)
- Dustproof waterproof structure
- intrinsically safe explosion-proof structure
Spec
- Target gas: Carbon monoxide, Oxygen
- Detection principle: Constant potential electrolytic type
- Sampling type: diffusion type
- Display Range: (ppm) 0-2000 (Carbon Monoxide)/(vol%) 0.0-40.0 (Oxygen)
- Resolution: [Carbon Monoxide] 1ppm (0-300ppm)/10ppm (300-2000ppm) [Oxygen] 0.1vol%
- Alarm setting (ppm): 1st 50/2nd 150/3rd 150
- Operating temperature range (°C): -40 to +60 (No sudden change)
- Operating humidity range (%RH): 0~95 (no condensation)
- Continuous Use: Approx. 3000 hours
- Gas alarm: 3-stage alarm, STEL alarm, cumulative alarm, over alarm
- Failure alarm: Sensor connection/disconnection, battery voltage drop, calibration error, clock error, system error
- Alarm return operation: Automatic return
- Alarm operation: lamp blinks, buzzer sounds intermittently, gas concentration value blinks, vibration
- Buzzer volume (dB): 80dB or more (30 cm)
- Power supply: 2 AAA Ni-MH batteries (eneloop)
- Explosion-Proof Structure: Intrinsically Safe Explosion-Proof Structure ([Battery Type] Ex ia IIC T4 Ga/[Rechargeable Battery Type] Ex ia IIC T3 Ga)
- Protection rating: equivalent to IP66/67
- External Dimensions (mm): Approx. 54 (W) x 67 (H) x 24 (D)
- Mass (g): about 93
- Functions: Data logger (* Dedicated software "Data Loger Management Program SW-04Series for domestic ***" is sold separately. [Supported OS: Windows7, 8, 10]), vibration, one-touch calibration, peak value display, temperature display
