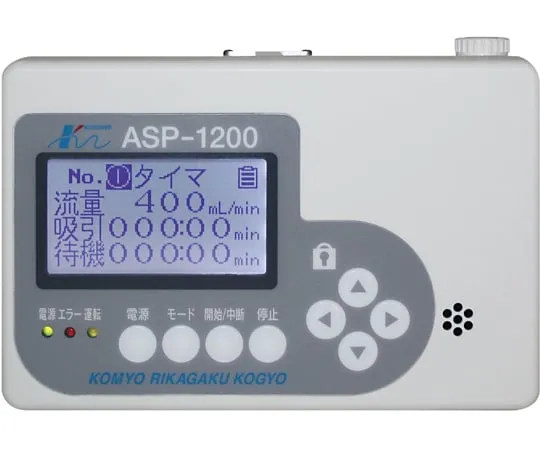

65-0320-35 air sampling pump ASP-1200
Product Description
Product Model: 65-0320-35Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 65-0320-35
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- Collection Tube/Detector Tube for Continuous Suction
- Wide range of suction from collection tube to detection tube
- Strong suction: Easy suction of 1 L/min of DNPH cartridge • Suction of activated carbon/silica gel/TENAX collection tube
- Can register 10 kinds of measurement conditions
- Protects the body from dust and water droplets equivalent to IP43.
- A wide range of flow rate settings (10~1200 mL/min) is possible
- The flow rate, suction amount, etc. can be checked on the screen
- The power supply is dry battery and AC power supply (USB terminal adapter included) ※ Commercially available mobile battery
- Small size and high function
Spec
- Flow setting range: 10~1200 mL/min (constant flow function)
- flow rate accuracy
- 10~100mL/min:±5mL/min
- 100~1200 mL/min: ±5% of the indicated value
- Accumulated flow rate indication range: 0.0~9999.9 L (20°C or 25°C conversion)
- Accumulated time indication range: 00:00~999:59 (hours: minutes)
- Modes: Timer Mode, Constant Volume Mode, Ext***ed Menu, Calibration Mode
- Internal Flowmeter: Mass Flow Sensor
- pumps: diaphragm system
- timer function: wait time, *** time setting
- Flow calibration function: Flow calibration is possible in calibration mode.
- Operating temperature and humidity range: 0~40°C, 90%RH or less (non-condensing)
- Power Supply: 4 AA Batteries (Alkaline battery, nickel metal hydride battery or lithium battery), AC Adapter (100 V AC, -240 V, 50/60Hz, Body Connector USB Micro-B Connector)
- Operating time: When using alkaline batteries (no load: 1200 mL/min): Continuous 12 hours or more * Dep***ing on operating conditions such as temperature.
- Dimensions: W145 x H99 x D54mm (excluding protrusions)
- Mass: approx. 500 g (including battery)
- Accessories: AC Adapter, 4 AA Alkaline Batteries, 3 Replacement Filters, 1 Connection Tube
- Optional Items: Special Case, Impinger Holder, Impinger Hook, Replacement Filter 10 pcs
