Features

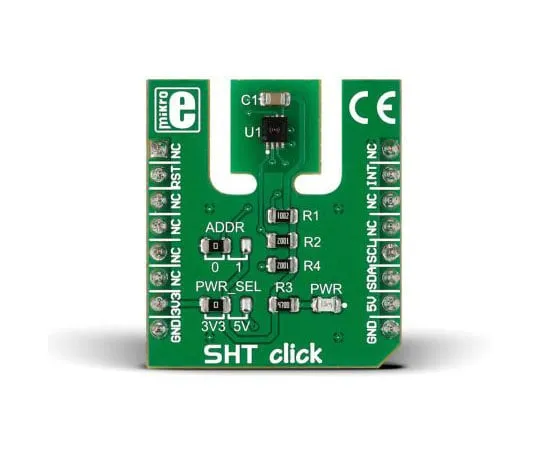

• Click board comes with the header strips soldered. SHT click mikroBUS™. SHT click is a mikroBUS™ add-on board for Temperature and Humidity sensing with digital output. It features the Sensiron SHT3x-DIS, a Humidity and Temperature Sensor. The SHT3x-DIS has increased intelligence, reliability, long-term stability and high accuracy. Alerts are programmable for certain temperature or humidity value settings with connection to the interrupt pin. Reset (RST) pin is ***d to generate a reset of the sensor. The interrupts allow the sensor to function as a thermostat. Fully calibrated, linearized, and temperature compensated ±2% RH typical Humidity Accuracy ±0.3°C typical Temperature Accuracy 16-Bit Humidity and Temperature Output Data I²C bus interface on mikroBUS socket I²C bus binary address hardware jumper 3.3 V (default) or 5 V power supply on mikroBUS socket Dimensions 28.6 x 25.4 mm
