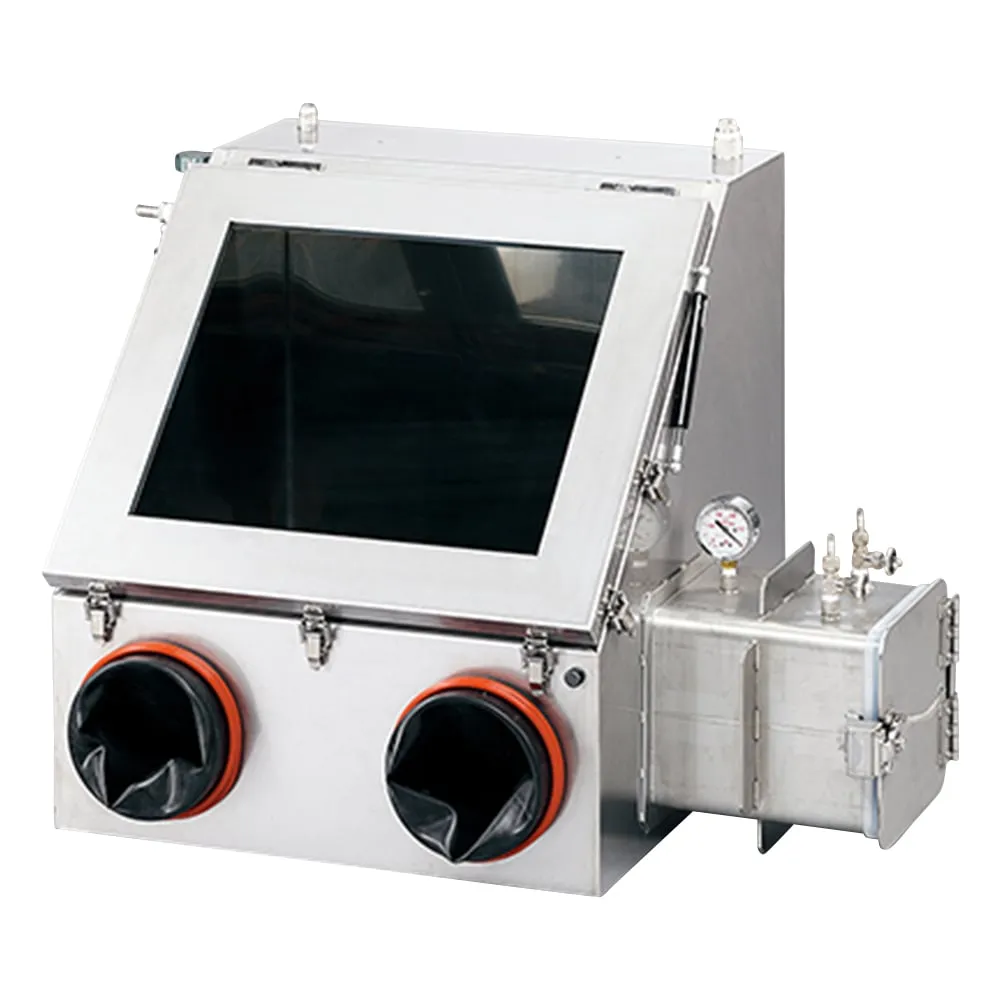

3-6621-01 Stainless Steel Glove Box (Gas Replacement Type) 600 x 650 x 650 ASA-600
Product Description
Product Model: 3-6621-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6621-01
Product Brand: AS ONE Corporation
Features
- Ensure a highly stable work environment.
- This glove box has a structure that emphasizes airtightness and is not affected by the external environment.
- It has a structure that can set positive pressure up to 100 Pa when air is supplied. (Internal pressure cannot be maintained.)
- The door can be opened and closed smoothly with a hydraulic damper.
- The pass box can be replaced with a vacuum drawing system.
Spec
- Model number: ASA-600
- Main unit size (mm): 600 x 650 x 650
- Pass box size (mm): 200 x 200 x 250
- Allowable Vacuum degree (pass box): 1Torr (approx 133Pa)
- Fluorescent lamps: 20W
- Material: Body/stainless steel (SUS304), Window/Strengthened glass, Gloves/neoprene
- Spare ports: Rc3/8, Rc 3/4 (both with plug)
- Window frame size: 550 x 510mm
- Cuff diameter: φ165mm
- Internal power: 15A Outlet (2 pieces)
- Weight: Approx 80kg
- Accessories: Gloves for Glove box f x 1 pair, Valve x 4 pieces (outer diameter φ8mm x 2 pieces and Outer diameter φ14mm x 2 pieces)
- *Transportation cost, carrying cost, installation cost, assembly cost, etc. are required separately. Please contact with us.
