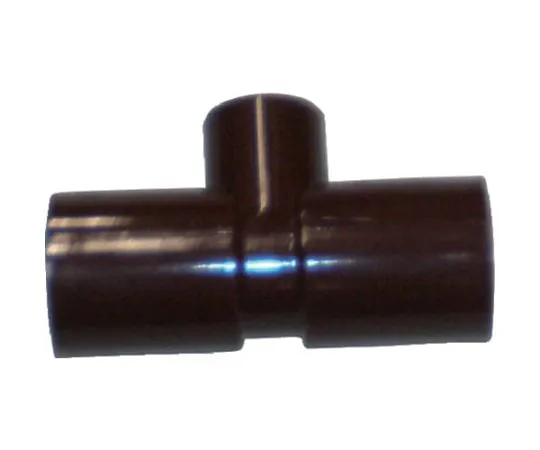

64-5053-30 HT Clean Joint Tees 75 x 40 HCLT753
Product Description
Product Model: 64-5053-30Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 64-5053-30
Product Brand: SEKISUI
Features
- HT Super Clean Pipe is an economical heat-resistant clean pipe material for ultrapure water with excellent heat resistance (heat-resistant hard polyvinyl chloride C-PVC) and elution characteristics.
- At present, Sekisui Chemical's clean pipe materials are widely ***d not only in the semiconductor industry, where ultrafine water is advancing, but also in advanced industries, such as the FPD industry, where ultrapure water is required.
- Ultrapure water piping equipment in buildings. Piping for clean rooms. Heat sterilization piping.
- Please be careful when using the adhesive.
- Please *** standard construction method.
- Please be sure to refer to the cautions for construction, performance and safety in the catalog reference material.
- Please *** Eslon Adhesive No. 100.
Spec
- PVC Pipe Nominal Diameter: 75 x 40
- Dimension (mm) D: 106
- Dimension (mm) D2:56
- Material: Heat resistant hard polyvinyl chloride
- Color: Red Brown
- Nominal cheese diameter: 75 mm x 40 mm
- D:102mm×D1
- H:124mm
- Maximum Operating Temperature: 90°C
- Color: Red Brown
- Material: Heat resistant hard polyvinyl chloride
- Achieved extremely low TOC and metal elution through unique PVC bl***ing and molding technology
- The inside of the tube is extremely smooth, preventing the growth of viable bacteria and contamination.
- It is a pipe material that surely supports the flow that requires high level of cleanliness.
- Material/Finish: Heat resistant hard polyvinyl chloride (C-PVC (Oil Prohibition Cleaning) Country of origin: Japan Code number: 850-6271
- There is a separate shipping fee for Hokkaido, Okinawa and remote islands.
*This product might require extra fees.
