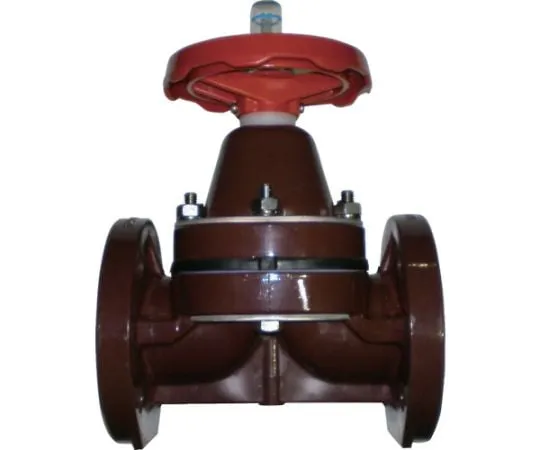

64-5052-96 Diaphragm Body: HT Diaphragm: EPDM 10 K Flange 100 A DTEF1H
Product Description
Product Model: 64-5052-96Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 64-5052-96
Product Brand: SEKISUI
Features
- Resin diaphragm valve.
- Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- Since the body and parts are made of hard vinyl chloride HT (C-PVC), it has excellent chemical resistance and can be ***d up to a higher temperature range than hard vinyl chloride.
- Optimized diaphragm and weir shape provide low torque and high sealing performance.
- The handle is equipped with a diaphragm protection over-tightening prevention mechanism and an indicator showing the opening.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
Spec
- Material: Body Heat-Resistant Hard Vinyl Chloride Tube C-PVC (HT) Diaphragm: EPDM
- Body: C-PVC
- Flange Type Nominal Diameter: 100 mm
- H:497mm
- Diaphragm: EPDM
- There are other connection methods: screw type and TS type.
- L:340mm
- Maximum Operating Temperature: 90°C
- Material: Body Heat-Resistant Hard Vinyl Chloride Tube C-PVC (HT) Diaphragm: EPDM
- Body: C-PVC
- Also available are main body materials: PVC, PP and PVDF.
- In addition, we also have PTFE and C-PE, so please *** them according to your application.
- Material/Finish: C-PVC (Heat Resistant Hard Polyvinyl Chloride)
- Country of Origin: Taiwan
- Securities Code: 850-6049
- There is a separate shipping fee for Hokkaido, Okinawa and remote islands.
*This product might require extra fees.
