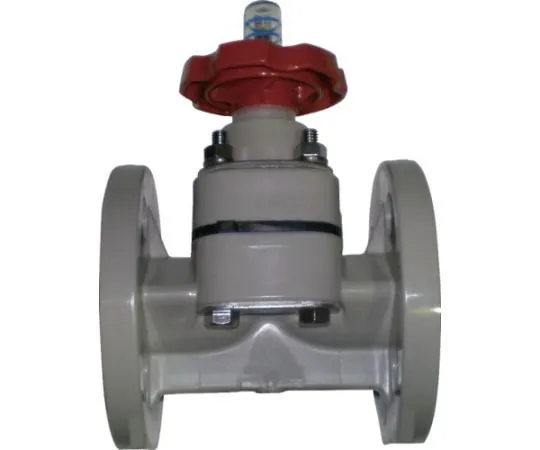

64-5052-95 Diaphragm Body: PP, Septum: PTFE 10 K, Flange 125 A DPPF1Q
Product Description
Product Model: 64-5052-95Product Brand: SEKISUI Feature […]
Contact Us
Product Details
Product Model: 64-5052-95
Product Brand: SEKISUI
Features
- Resin diaphragm valve.
- Can be ***d safely without being corroded by acidic or alkaline chemicals or seawater.
- Since the body and parts are made of polypropylene (PP), it has excellent chemical resistance and can be ***d up to a higher temperature range than hard vinyl chloride.
- Optimized diaphragm and weir shape provide low torque and high sealing performance.
- The handle is equipped with a diaphragm protection over-tightening prevention mechanism and an indicator showing the opening.
- Suitable for a variety of piping such as chemical piping in chemical factories, pure water piping in semiconductor factories, seawater piping in fishery factories, and wastewater treatment lines in food factories.
Spec
- Material: Main Unit Polypropylene (PP) Septum: PTFE
- Body: PP
- Flange Type Nominal Diameter: 125 mm
- H:560mm
- Diaphragm: EPDM
- L:410mm
- Maximum Operating Temperature: 90°C
- Material: Main Unit Polypropylene (PP) Septum: PTFE
- Body: PP
- Also available are main body materials: PVC, HT and PVDF.
- In addition, we also have the diaphragm material: EPDM, so please *** it according to your application.
- Material/Finish: Polypropylene
- Country of Origin: Taiwan
- Securities Code: 850-6041
- There is a separate shipping fee for Hokkaido, Okinawa and remote islands.
*This product might require extra fees.
