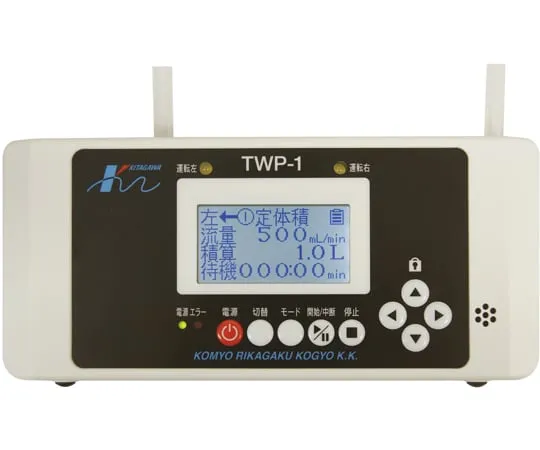

65-0320-33 double sampling pump TWP-1
Product Description
Product Model: 65-0320-33Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 65-0320-33
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- Simultaneous suction is possible with two suction ports.
- Two indep***ent load-bearing suction ports.
- Any combination of activated carbon, silica gel, DNPH, detector tube and impinger is available. Can be ***d with either suction port.
- Simultaneous suction of collection and detection tubes of different types. Stable suction is possible even if there is a difference in the flow rate.
- You can check the setting condition, suction condition, etc. in one screen.
- Simple button operation, 10 kinds of measurement conditions can be registered on the left and right sides respectively, and simultaneous start and stop functions are installed.
- About 700 g for 2 pumps.
- Powered by batteries and AC power. *Mobile Battery (2.4 A or More) Allowed
- The left and right pumps have the same specifications and are indep***ent.
Spec
- Flow setting range: 10~1200 mL/min (constant flow function)
- flow rate accuracy
- 10~100mL/min:±5mL/min
- 100~1200 mL/min: ±5% of the indicated value
- Accumulated flow rate indication range: 0.0~9999.9 L (20°C or 25°C conversion)
- Accumulated time indication range: 00:00~999:59 (hours: minutes)
- Modes: Timer Mode, Constant Volume Mode, Ext***ed Menu, Calibration Mode
- Internal Flowmeter: Mass Flow Sensor
- pumps: diaphragm system
- timer function: wait time, *** time setting
- Operating temperature and humidity range: 0~40°C, 90%RH or less (non-condensing)
- Power: 4 AA batteries (Alkaline battery, nickel metal hydride rechargeable battery, lithium battery), AC adapter
- Main body connector: USB Micro-B, DC5V max. 3A
- Operation time: Alkaline battery ***d (no load on the left and right: 1200 mL/min), simultaneous operation time on the left and right: 4.5 hours or more * Dep***s on operating conditions such as temperature.
- Dimensions: W209 x H99 x D54mm (excluding protrusions)
- Mass: approx. 710 g (including battery)
- Accessories: 4 AA alkaline batteries, 6 replacement filters, 2 connecting tubes
- Optional Items: AC Adapter, Impinger Holder, Impinger Hook, Replacement Filter 10 pcs
