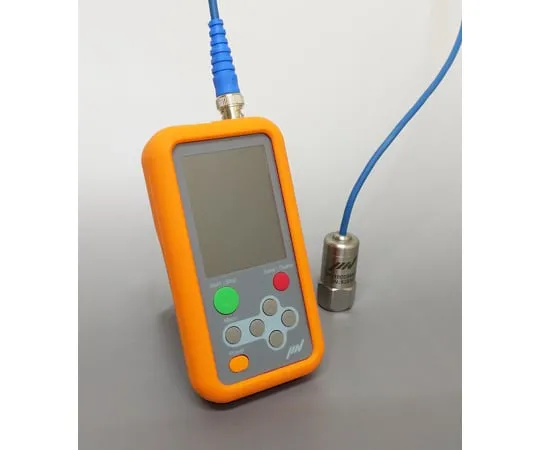

64-9641-48 Judgment Vibrometer Machine Referee Starter Pack VM-4431EC
Product Description
Product Model: 64-9641-48Product Brand: IMV Features Fo […]
Contact Us
Product Details
Product Model: 64-9641-48
Product Brand: IMV
Features
- For the internal failure diagnosis of rotating machines, it is effective to perform the diagnosis by the vibration value, but many first-timers find the diagnosis method complicated and troublesome.
- Judgment Vibrometer Machine Referee is equipped with a judgment function based on ISO vibration evaluation criteria that can solve such problems immediately. Anyone can easily diagnose with the touch of a button.
- Also, this product comes with a set of options and is recomm***ed for those who want to *** it immediately after purchase.
Spec
- Sensors ***d: Piezoelectric acceleration/pickup
- Measurement mode: OA measurement
- Measurements: Acceleration, velocity, displacement, envelope function
- Maximum measurements: acceleration/1000 (m/s2 Peak RMS), velocity/200 (mm/sPeak RMS), displacement/10 (mmRMS/EQPeak/EQP-P), envelope function/200 m/s2
- Frequency range: acceleration/5 ~ 10 kHz, velocity/displacement/10 ~ 1 kHz, envelope acceleration/500 ~ 10 kHz
- Functions: Vibration severity rating, storage function, circular route measurement function
- AC output: 0 to +/- 1 V (load 10 kohm or more)
- Display language: alphanumeric characters, symbols
- Power supply: 2 AA batteries
- Mass: About 230 g (including battery)
- Dimensions: 130 (H) x 67 (W) x 28 (D) Including protrusions
- authentication: CE mark
- Composition of products
- 1 set of VM -4431 machine referees
- 1 x UB 305 -0510 AC adapter
- Long Probe TVM -4 - B 371 x 1
- Wall hanging magnet A 16 x 1
