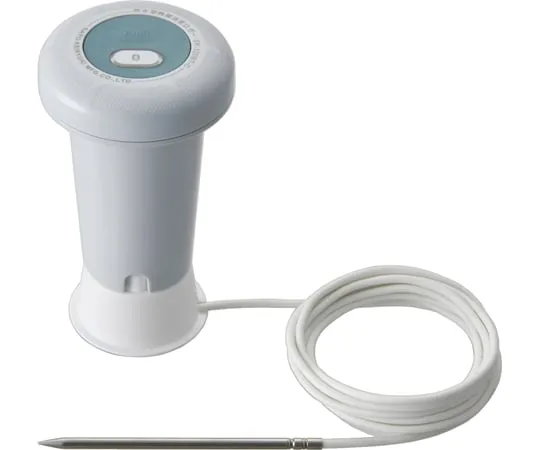

64-9109-13 Waterproof Wireless Temperature Logger SK-320BT-C

model: 64-9109-13
brand: Sato Keiryoki Mfg. Co., Ltd.
category: toner

Product Description

Product Model: 64-9109-13Product Brand: Sato Keiryoki M […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-9109-13
Product Brand: Sato Keiryoki Mfg. Co., Ltd.

Features

  • This product complies with the Radio Law.
  • You can check the temperature from a distance with your smartphone or tablet.
  • Data and graphs can be recorded with a dedicated application, and data can be emailed as a CSV file for storage and analysis on a personal computer.
  • One terminal can connect up to eight devices at the same time. With Alarm Function (The dedicated application is notified when the upper and lower limit setting values are exceeded.)
  • With a cable, it can be ***d by inserting a temperature sensitive part in the water or a gap in a wall. In addition, since the sensor has a tip shape, it can be ***d by sticking it into the soil. *Cannot be ***d with the body submerged.
  • As with the SK-320BT, it is only for *** in Japan and cannot be ***d overseas.

Spec

  • Temperature sensor: thermistor
  • Measurement Range: -50.0 to 150.0 °C * Sensor unit (pipe + cord) can be ***d under constant water. Measurement Range will be 0 to 100 °C.
  • Accuracy: ± 1.0 °C (0.1 to 40.0 °C), ± 1.5 °C (-15.0 to 0.0 °C, 40.1 to 65.0 °C), ± 2.0 °C (-30.0 to -15.1 °C, 65.1 to 150.0 °C), ± 3.0 °C (-50.0 to -30.1 °C)
  • Resolution: 0.1 °C
  • Memory capacity: 8960 data
  • Measurement interval: 1, 5, 10, 15, 30, 60 min
  • Sampling: about 60 seconds (communication every 1.2 seconds)
  • Wireless standards: Bluetooth 5.1 (wireless certificate number: 018 -140077)
  • Radio frequency: 2402 to 2480 MHz
  • Communication distance: Approx. 30 m (in the case of a straight line with good visibility without any shielding)
  • Waterproof: IPX5 (Body)/IPX7 (Sensor)
  • environment ***d: -15 to 65 °C (non-condensing)
  • Power Supply : AA size type alkaline battery 3 pieces or AA size type Total lithium battery 3 pieces
  • battery life : about 1 year (Recording interval 60 minutes, LED brightness setting 3, R.T. settings, using alkaline battery)
  • material: Case/ABS Plastic, Rubber (Top of Case)/TPE Plastic, Temperature Sensitive Portion/SUS304 Cord/Silicon
  • Dimensions: Body/Approx. (φ) 68 x (H) 98 mm, Temperature Sensitive Part/Approx. φ4 x 100 mm (Togari Tip), Cord/Approx. φ3 x 2 m
  • Mass: about 194 g (including battery)
  • Accessories: Instruction Manual, AA size alkaline battery 3 pieces, Stand (Removable) 1 piece, Hand Strap 1 piece
  • Application: SKSATO 320 BT
  • Note:The dedicated application is compatible with the following models and operating systems, but it does not guarantee operation on all terminals.
  • compatible models: iPhone/iPad/iPad mini/Android smartphone/tablet
  • Supported OS: iOS 9.0 or above, Android 5.0 or above
  • Wireless: Bluetooth 4.0
  • *Please prepare a terminal separately.
  • Code Number: No. 8440 -20
