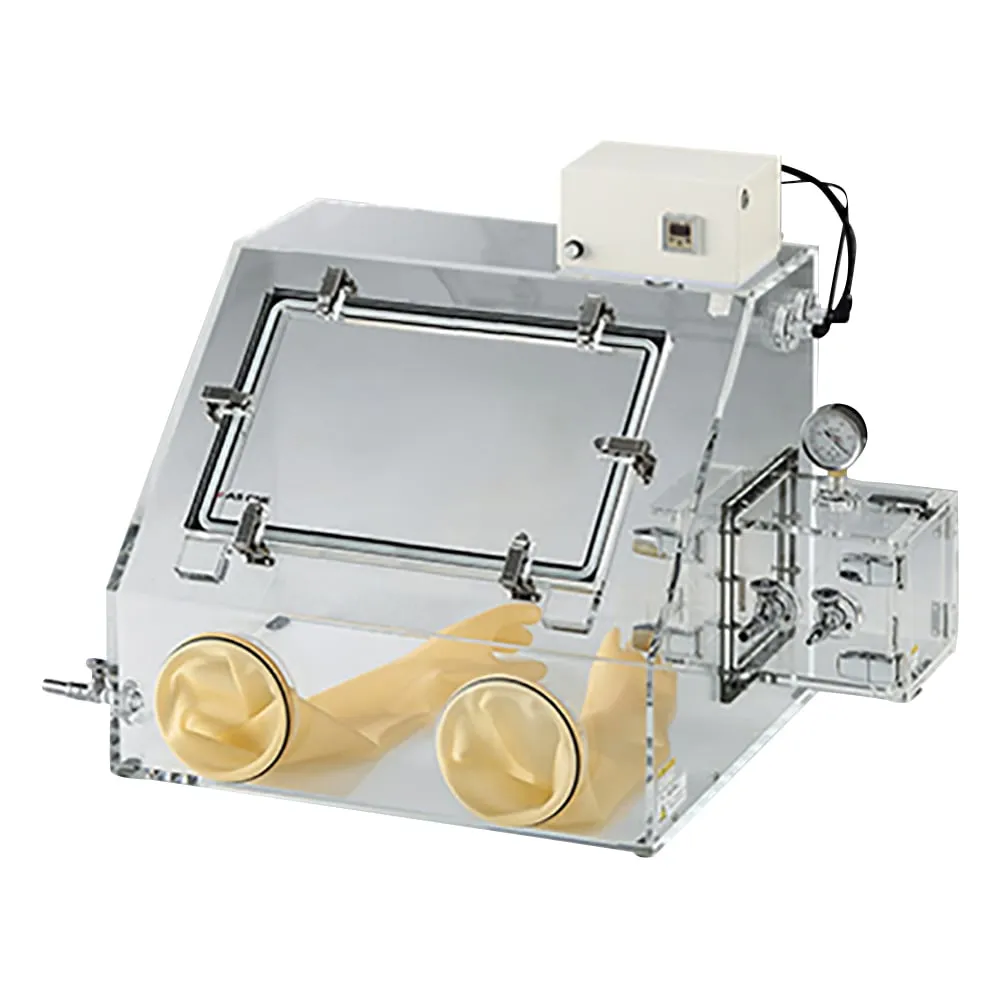

3-6544-01 Airtight Glove BOX (With Chamber Pressure Control) 890 x 485 x 450 600 +PCRM-01
Product Description
Product Model: 3-6544-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6544-01
Product Brand: AS ONE Corporation
Features
- You can automatically adjust the pressure in the cabinet.
- By connecting to an external gas supply source, the pressure difference between the external pressure (outside) and the pressure inside the glove box is automatically maintained and digitally displayed within the specified differential pressure (-0.5 kPa to -0.01 kPa or 0.01 kPa to 0.5 kPa).
- When a pressure difference other than the setting occurs, an alarm is displayed.
- It is environmentally fri***ly and reduces running costs by eliminating the need for continuous gas to keep the inside of the cabinet under positive (negative) pressure.
Spec
- Model number: Air tight 600+PCRM-01
- Size (mm): 890 x 485 x 450
- Minimum operation differential pressure/Minimum display units pressure: 0.05kPa/0.01kPa
- Material: Body/Transparent PMMA (acrylic resin), Valve, Vacuum gauge mounting portion/PC (polycarbonate), Hinge Base/PMMA (acrylic)
- External connection: Air supply port (negative pressure side)/Outer diameter φ8mm tube (one touch method), Gas (air also available) supply port (positive pressure side)/Outer diameter φ8mm tube (one touch method), Exhaust port/Outer diameter φ10mm tube (one touch method)
- Supplied air pressure: 0.4 - 0.6MPa (consumption: 80L/min(ANR))
- Supply gas pressure: 0.6MPa or less
- Power supply: AC100V 50/60Hz
- Weight: 28kg
- Accessories: Valve x 1 piece (outer diameter φ14mm), Large Gloves for Glove box x 1 pair
*This product might require extra fees.
