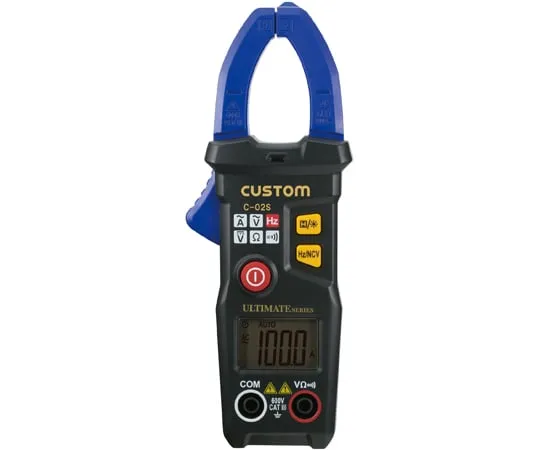

Spec

• ACV
• Range: 1.0~600 V
• Resolution: 0.1 V
• Accuracy: ± (0.8%rdg+5dgt)/45~65 Hz
• DCV
• Range: 0.5~600 V
• Resolution: 0.1 V
• Accuracy: ± (0.5%rdg+3dgt)
• ACA
• Range: 0.01~6 A/6~60 A/60~200 A
• Resolution: 0.001 A/0.01 A/0.1 A
• Accuracy: ± (2.5%rdg+8dgt)/45~65 Hz
• Ω
• Range 0~6 kΩ
• Resolution: 0.001 kΩ
• Accuracy: ± (0.8%rdg+3dgt)
• Frequency
• Range: 40~60 Hz/60~1000 Hz
• Resolution: 0.1 Hz/1 Hz
• Accuracy: ± (1.0%rdg+5dgt)
• continuity check: 0~50 ohms: beep sounds
• Non-contact Power Detection: 90~1000 VAC: Beep sounds, LED flashes
• Detection method: Average value method
• Display: LCD, 6000 count
• Range: Auto
• Maximum measurement conductor diameter: φ20 mm
• Sampling: approx. 3 times/second
• Operating temperature and humidity: 0~+40°C, 75%RH or less (However, there shall be no condensation.)
• Storage temperature and humidity: -10~+50°C, 75%RH or less (However, batteries are not included and there is no dew condensation.)
• Dimensions: Approx. W63 x H158 x D28mm (excluding clamp open/close lever)
• Weight: about 136 g(Battery Included, Test Lead Excluded)
• Power supply: 2 AAA batteries
• Battery Life: Up to 150 hours (alkaline battery)
• Accessories: Storage Case, Instruction Manual, Test Lead x 1 Set
• Optional: Test Lead/ATL-3N
• Calibration: Yes
• Standards compliant: IEC61010-1, IEC61010-2-30, IEC61010-2-032CAT. II1000V, CAT. III600V
