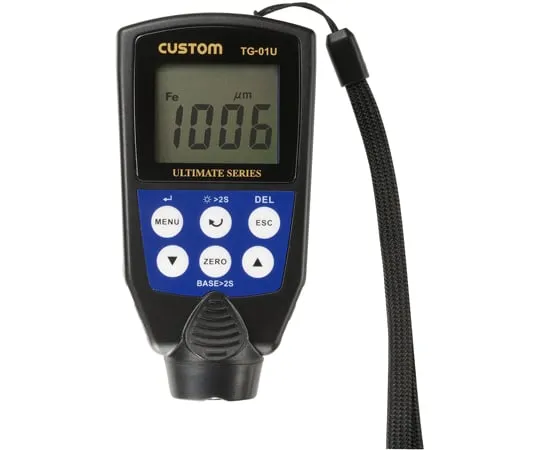

64-8893-10 Film thickness meter TG-01U
Product Description
Product Model: 64-8893-10Product Brand: CUSTOM corporat […]
Contact Us
Product Details
Product Model: 64-8893-10
Product Brand: CUSTOM corporation
Features
- Film thickness meter capable of measuring iron base. Handy size convenient for carrying.
- Equipped with upside-down display function. You can easily check the results in overhead measurements.
- Equipped with two types of "self-calibration function": standard calibration and zero calibration.
- Equipped with an "alarm setting mode function" that sounds when the set upper and lower limits are exceeded.
- Application: Thickness measurement of coatings and plating on iron substrates (Iron, Steel) for vehicles, ships, bridges, tanks, plants, buildings, etc.
- There is also a TG-02U compatible with both ferrous and non-ferrous metals.
Spec
- Measurable coating: coating, plastic, lacquer, resin, rubber, enamel, lining, parkerizing, galvanizing, chrome-plating, tin-plating, copper-plating, aluminum-plating,
- Measurement Range: Iron Base (Iron/Steel) 0~2,000 μm
- Resolution: Iron Base (Iron/Steel) 1 μm
- Accuracy: Iron Base (Iron/Steel) 0~199 μm/±10dgt, 200~1,000 μm/± (3%rdg+10dgt), 1,001~2,000 μm/± (5%rdg+10dgt)
- Measurement method: Electromagnetic
- Sampling: approx. 1/second
- Operating temperature and humidity: 0~+50°C, 75%RH or less (However, there shall be no condensation.)
- Storage temperature and humidity: -20~+60°C, 80%RH or less (However, batteries are not included and there is no dew condensation.)
- Dimensions: Approx. W55 x H105 x D27mm
- Weight: about 85 g (including battery)
- Power supply: 2 AAA batteries
- Battery Life: Approx. 25 hours (When using alkaline batteries. Battery life will be shortened dep***ing on the frequency of *** of the backlight. )
- Accessories: Instruction Manual, Coating Plate x 1, Zero Adjustment Plate (Steel) x 1, Storage Case, Strap
- Option: Calibration Plate/TG-01CP (* 1 Set Included with Body)
- Calibration: Yes
