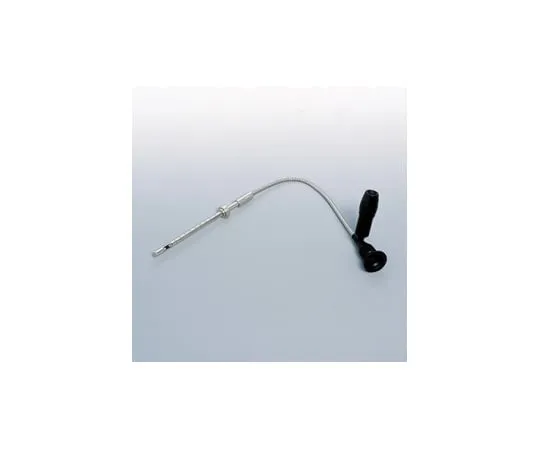

64-8873-93 Kenken Type Concrete Checker TN-110
Product Description
Product Model: 64-8873-93Product Brand: Kett Electric L […]
Contact Us
Product Details
Product Model: 64-8873-93
Product Brand: Kett Electric Laboratory
Features
- the Ministry of Land, Infrastructure, Transport and Tourism Building Research Institute concrete checker
- Used for inspection for repair and repair of exterior materials
- Diagnosis is almost nondestructive with an inspection hole of about 9 mm.
Spec
- Total Length: 520 mm
- Tip Bracket: 158 mm
- Outer Diameter: φ8.0 mm
- Allowable b*** radius: 70 mm
- Focal length: 0 to ∞
- Number of Pixels: 20,000 (Wire Diameter: 50 μm)
- Bundle Diameter: φ1.8 mm
- Viewing Direction: Side View (360° Rotation)
- Field of View: Approx. 55°
- Maximum measurement depth: 100 mm
- Allowable operating temperature: – 20~80°C
- Lamp: Ultra-small halogen lamp
- Power Supply: Lithium Battery CR123A
- Weight: Approx. 0.4 kg (excluding batteries)
