Features

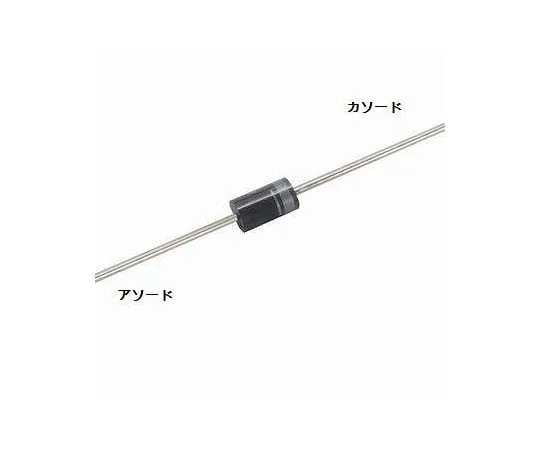

• 1.57 A30V Schottky diode. For rectification.
• Package: Axial
• VRRM: 30 V
• IF (RMS): 1.57 A
• IFSM: 40 A
• Tjw: -40°C~+150°C
• Tstg: -40°C~+150°C
• IRM (MAX): 1.0 mA
• VFM (MAX): 0.45 V
• Rth (j-a): 140°C/W
• Notes: Thermal resistance without single fin
• [Recomm***ed point]
• For switching: Suitable for switching converters with low peak reverse current.
• [Features] • Low forward voltage: Vfm=0.45 V (Tj=25°C Ifm=1 A) • Notes: 1 Similar to S3. The current standard is larger than 1S3.
