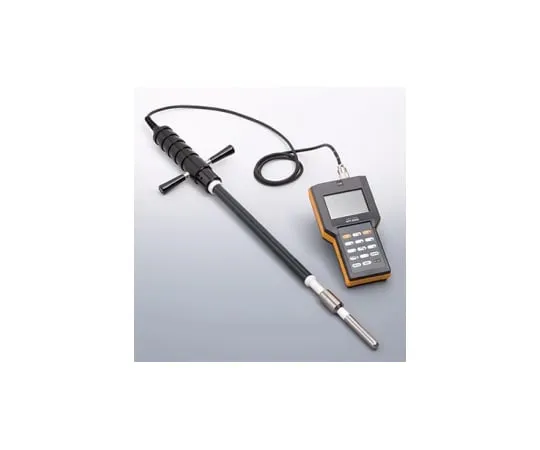

64-8873-75 Wood Chip Moisture Meter MT-200
Product Description
Product Model: 64-8873-75Product Brand: Kett Electric L […]
Contact Us
Product Details
Product Model: 64-8873-75
Product Brand: Kett Electric Laboratory
Features
- Measurement by inserting a rod-shaped sensor into a pile of wood chips ***d as biomass fuel
- Equipped with calibration curves for cutting and crushing chips
- User calibration curve can be created
- Equipped with upper alarm and moisture value correction function
Spec
- Measurement Method: Electrical Resistance
- Measuring object: cutting tip, grinding tip
- Measuring range: 15~55% (wet base)
- Measurement accuracy:
- Cutting Tip: Standard Error 5.0%, Repeated Accuracy 2.0%
- Crushing Tip: Standard Error 3.0%, Repeating Accuracy 2.0%
- Standard method: 103°C constant weight method (based on JIS Z 2109: 2009)
- Display Method: Digital (LCD, Minimum Display Digit 0.1%)
- Operating Temperature Range: 0~40°C (No Condensation)
- Functions: Upper alarm (15~55% or off), Average value display, Water value correction (±9.9%), Auto power off, Continuous measurement mode, Calibration curve memory (13 types)
- Power Supply: 1.5 V Battery (AA Alkali) x 6
- Power consumption: 0.54 W
- Dimensions and mass:
- Body: 110 (W) x 210 (D) x 50 (H) mm, 0.5 kg
- Bar sensor (excluding cable): 176 (W) x 705 (D) x 45 (H) mm, 1.3 kg
